01 - Upper Oven Parts
02 - Lower Oven Parts

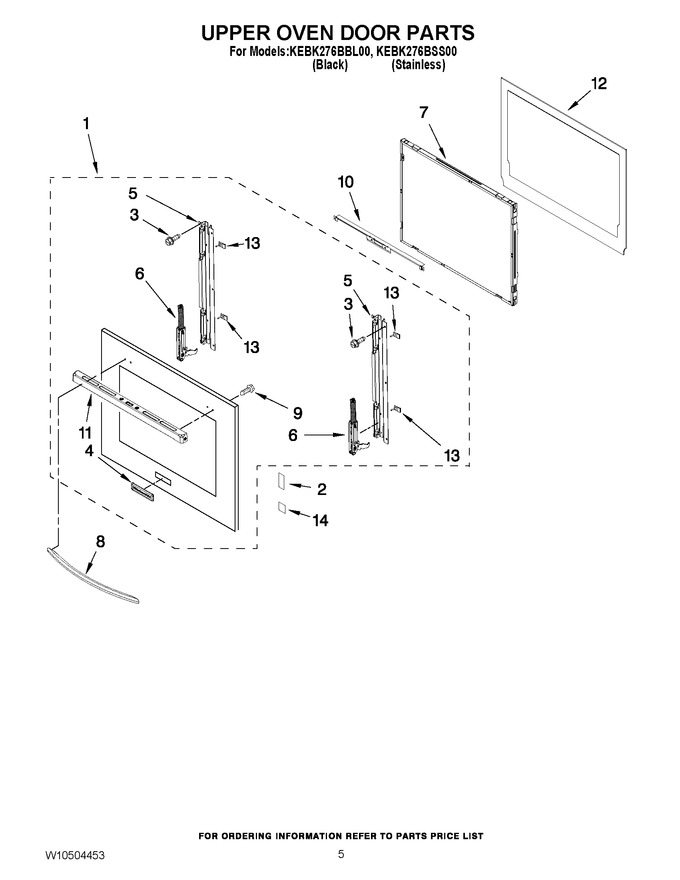

03 - Upper Oven Door Parts
04 - Lower Oven Door Parts
05 - Internal Oven Parts
06 - Control Panel Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10364934 | Assembly, Door Glass (stainless) |
|
- | |||||
| 1 | W10364935 | Assembly, Door Glass (black) |
|
- | |||||
| 2 | W10840861 | Spacer (Replaces: W10517440) |
|
$ 10.37 | |||||
| 3 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10243391 | Badge (stainless) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 4 | WPW10243392 | Badge (black) (Replaces: W10243392) |
|
$ 73.70 | |||||
| 5 | W10284278 | Bracket, Door Side (left) |
|
- | |||||
| 5 | W10284279 | Bracket, Door Side (right) |
|
- | |||||
| 6 | W11642291 | Hinge, Door (Replaces: W10419878) |
|
$ 83.24 | |||||
| 7 | W10347599 | Assembly, Window Pack |
|
$ 212.42 | |||||
| 8 | WPW10437675 | Door Handle (stainless) (Replaces: W10437675) |
|
$ 202.61 | |||||
| 8 | W10284919 | Door Handle (black) |
|
- | |||||
| 9 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 8.78 | ||||
| 10 | W10502538 | Bracket, Upper, Glass |
|
- | |||||
| 11 | W10416258 | Vent, Door Top |
|
- | |||||
| 12 | WPW10335921 | Liner, Door (Replaces: W10335921) |
|
$ 413.62 | |||||
| 13 | WPW10323551 | Bumper, Rail (Replaces: W10323551) |
|
$ 8.41 | |||||
| 14 | WPW10517428 | Spacer (Replaces: W10517428) |
|
Immediately | $ 12.44 |
