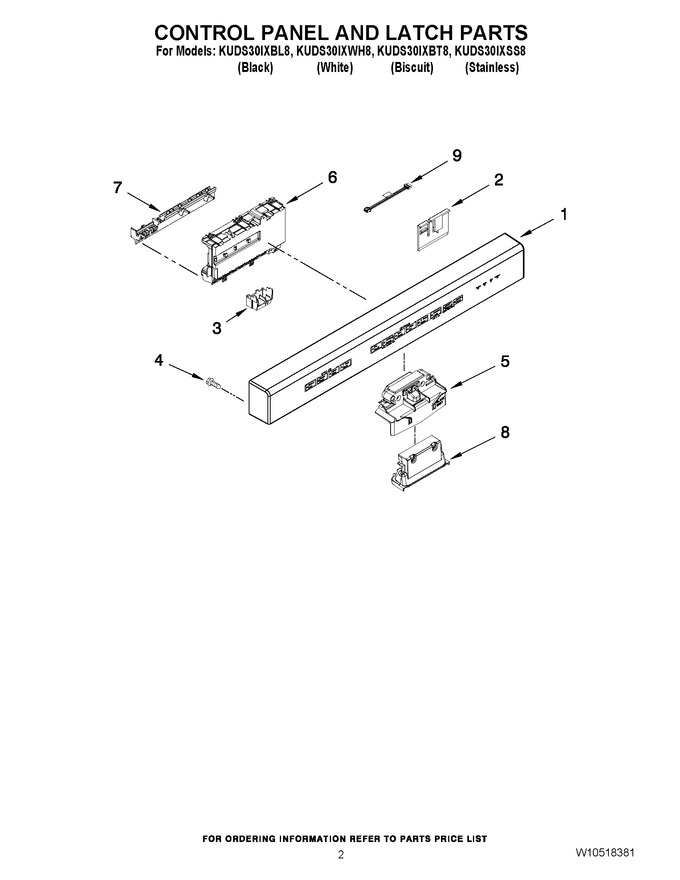

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10493296 | Console Assembly (biscuit) |
|
- | |||||
| 1 | W10493294 | Console Assembly (black) |
|
- | |||||
| 1 | WPW10500173 | Console Assembly (white) (Replaces: W10493295) |
|
$ 396.71 | |||||
| 1 | W10493297 | Console Assembly (stainless) |
|
- | |||||
| 2 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 3 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 31.41 | |||||
| 4 | WPW10348409 | Screw (Replaces: W10348409) |
|
Immediately | $ 8.20 | ||||
| 5 | W10619006 | Latch Assembly (includes Switch) (Replaces: W10380262) |
|
Immediately | $ 39.09 | ||||
| 6 | W11035586 | Control, Electronic (Replaces: W10461372) |
|
$ 260.56 | |||||
| 7 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 30.56 | |||||
| 8 | WPW10195718 | Handle (black) (Replaces: W10195718) |
|
$ 133.15 | |||||
| 8 | W10195833 | Handle (white) |
|
$ 50.72 | |||||
| 8 | W10195834 | Handle (biscuit) |
|
$ 143.38 | |||||
| 8 | W10195835 | Handle (midnight Grey) |
|
$ 52.05 | |||||
| 9 | W10315814 | Jumper, 4-wire |
|
$ 23.68 |
