Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10463570 Door, Refrigerator (includes Items 2, 3, 5 & Molded Handle) (black) Appelez-nous -
1 W10463571 Door, Refrigerator (includes Items 2, 3, 5 & Molded Handle) (satina) Appelez-nous -
1 W10370909 Door, Refrigerator (includes Items 2, 3, 5 & Molded Handle) (white) Appelez-nous -
2 W11228130 Gasket, Refrigerator Door (white)   (Replaces: W10507443) Special Order $ 290.52

2 W11625052 Gasket, Refrigerator Door (black)   (Replaces: W10507447) Special Order $ 230.16

2 W11625055 Gasket, Refrigerator Door (grey)   (Replaces: W10507460) Special Order $ 232.22

3 W10492012 Bracket, Door Stop Special Order $ 16.85

4 WP681249 Screw   (Replaces: 489276) In-Stock Immediately $ 8.25

5 WP2212651 Plug, Hole (black)   (Replaces: 2212651) Special Order $ 24.21

5 WP2254517 Plug, Hole (grey)   (Replaces: 2254517) In-Stock Immediately $ 24.34

5 WP2212648 Plug, Hole (white)   (Replaces: 2212648) In-Stock Immediately $ 8.19

6 W11178521 Nameplate (white)   (Replaces: W10481434) In-Stock Immediately $ 63.13

6 W11178521 Nameplate (grey)   (Replaces: W10481433) In-Stock Immediately $ 63.13

7 W11199415 Trim, Door Shelf (bottom)   (Replaces: W10364009) Special Order $ 98.68

8 W10489075 Bin, Gallon Door Appelez-nous -
9 WPW10364007 Bin, Shallow Door   (Replaces: W10364007) Special Order $ 76.93

10 W11745278 Bracket, Door Stop   (Replaces: 2189202) In-Stock Immediately $ 13.37

11 W10370907 Door, Freezer (includes Items 10, 12 & Molded Handle) (white) Appelez-nous -
11 W10463569 Door, Freezer (includes Items 10, 12 & Molded Handle) (satina Appelez-nous -
11 W10463568 Door, Freezer (includes Items 10, 12 & Molded Handle) (black) Appelez-nous -
12 W11625051 Gasket, Freezer Door (grey)   (Replaces: W10507442) Special Order $ 228.86

12 W11625037 Gasket, Freezer Door (black)   (Replaces: W10507441) Appelez-nous -
12 W11625036 Gasket, Freezer Door (white)   (Replaces: W10507440) Special Order $ 236.75

13 WPW10370890 Bin, Freezer Door   (Replaces: W10370890) Special Order $ 75.88


    View Diagram in Separate Window     Print Icon   Print Part List

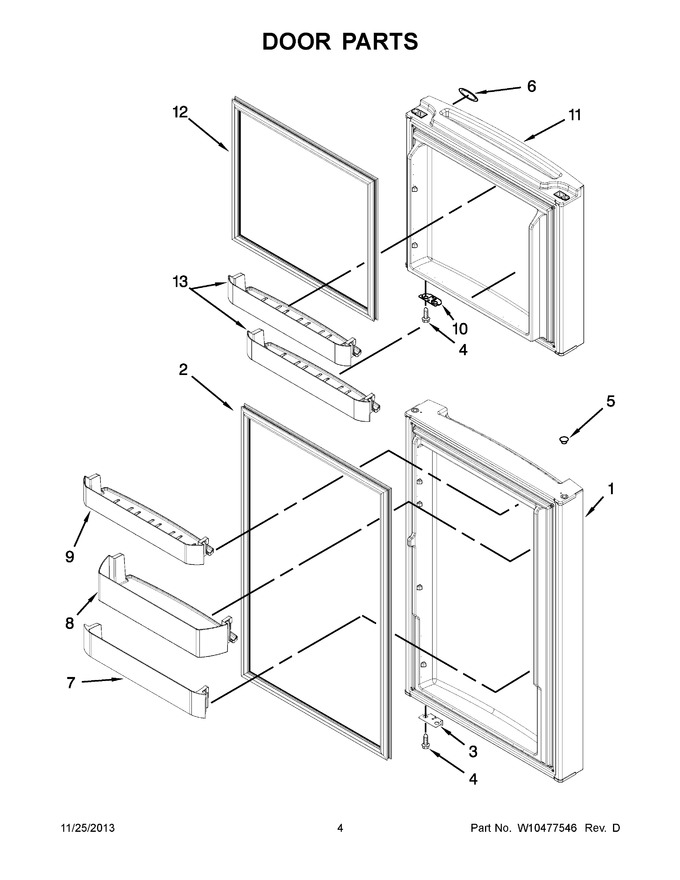

Diagram for WRT111SFAB00
