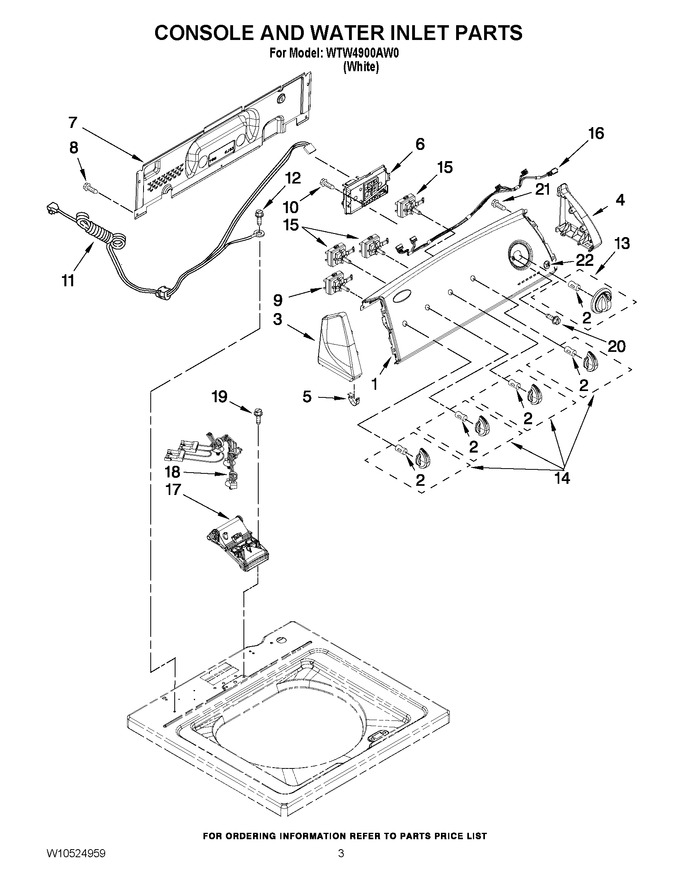

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10468382		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
3	WP8565957		Cap, End (l.h.) (includes Item 5)   (Replaces: 8566035)				$ 61.68
4	WP8565954		Cap, End (r.h.) (includes Item 5)   (Replaces: 8566032)				$ 62.70
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10520037		Control Unit Assembly, Machine & Motor				$ 286.37
7	WPW10461159		Panel, Rear Console   (Replaces: W10461159)			Immediately	$ 343.27
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
9	WPW10285512		Switch, Rotary Encoder   (Replaces: W10285512)			Immediately	$ 181.40
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.82
11	WPW10525194		Cord, Power   (Replaces: W10276649)				$ 155.63
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.76
13	W10034750		Knob, Timer				$ 28.27
14	W10034380		Knob, Control				$ 25.06
15	WPW10285511		Switch, Rotary Encoder   (Replaces: W10285511)			Immediately	$ 173.43
16	WPW10291176		Harness, Upper   (Replaces: W10291176)				$ 165.04
17	WPW10683603		Inlet Assembly, Water   (Replaces: W10423125)			Immediately	$ 81.56
18	W10876654		Harness, Valve   (Replaces: W10423127)				$ 185.64
19	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.19
20	WP3400818		Screw   (Replaces: 3400818)				$ 7.96
21	3400073		Screw		Appelez-nous	-
22	WPW10251309		Pushbutton, Start   (Replaces: W10251309)			Immediately	$ 72.38
