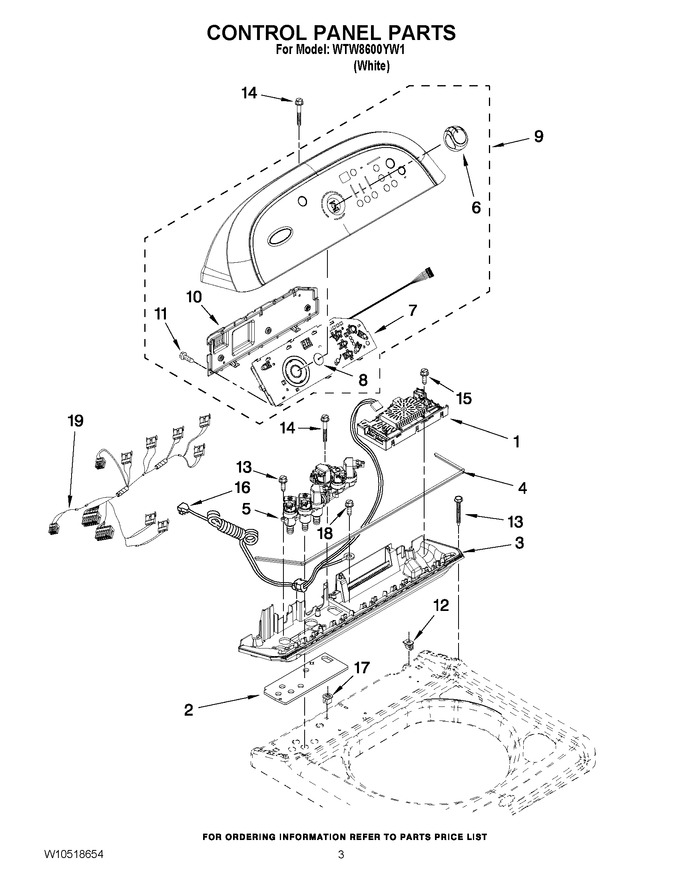

02 - Control Panel Parts
03 - Motor, Basket And Tub Parts
04 - Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10447146 | Control Unit Assembly, Machine & Motor |
|
$ 267.10 | |||||
| 2 | W10130502 | Gasket, Valve Tray |
|
$ 19.43 | |||||
| 3 | 8578550 | Tray Assembly, Console (includes Items 2 & 4) |
|
$ 45.19 | |||||
| 4 | 8546616 | Gasket, Console/tray |
|
$ 60.11 | |||||
| 5 | W10853723 | Valve, Log (Replaces: W10342320) |
|
Immediately | $ 142.62 | ||||
| 6 | WPW10211335 | Knob, Control (Replaces: W10211335) |
|
$ 59.76 | |||||
| 7 | W10394243 | User Interface |
|
$ 263.55 | |||||
| 8 | 8572039 | Seal, Ui |
|
- | |||||
| 9 | W10404673 | Console |
|
$ 328.53 | |||||
| 10 | 8564265 | Cover, Rear Ui |
|
$ 142.60 | |||||
| 11 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.98 | |||||
| 12 | W10022060 | Nut, Push In |
|
- | |||||
| 13 | WPW10052600 | Screw (Replaces: W10052600) |
|
$ 7.30 | |||||
| 14 | 8565324 | Screw |
|
$ 14.05 | |||||
| 15 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 16 | WPW10547372 | Power Cord (Replaces: W10435307) |
|
$ 92.15 | |||||
| 17 | 98460 | Nut, Push In |
|
$ 12.07 | |||||
| 18 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 19 | WPW10404419 | Upper Harness (Replaces: W10404419) |
|
$ 77.97 |
