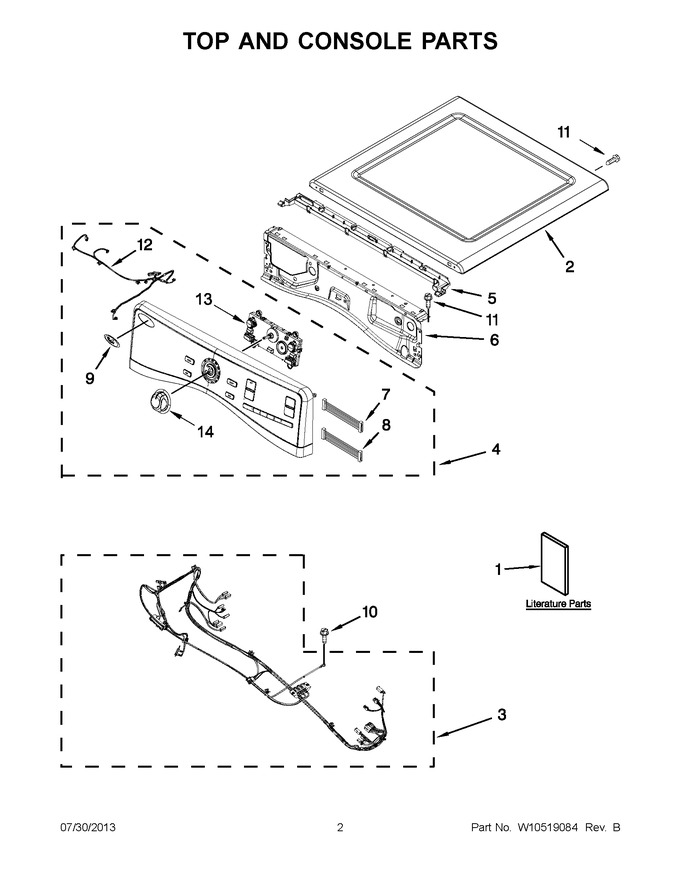

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10410465 | Tech Sheet |
|
- | |||||
| 1 | W10436726 | Tech Sheet |
|
- | |||||
| 1 | W10305728 | Use & Care Guide |
|
- | |||||
| 1 | W10436347 | Use And Care Guide |
|
- | |||||
| 1 | W10423115 | Installation Instructions |
|
- | |||||
| 1 | W10300195 | Wiring Diagram |
|
- | |||||
| 2 | WPW10316282 | Top (silver) (Replaces: W10316282) |
|
$ 346.19 | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | W10441590 | Harness, Main |
|
$ 137.82 | |||||
| 4 | W10388454 | Panel, Console (white) |
|
- | |||||
| 4 | W10388455 | Panel, Console (silver) |
|
- | |||||
| 5 | WPW10653575 | Water Channel (Replaces: W10259210) |
|
$ 90.94 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | W10267938 | Harness, Jumper Ui |
|
- | |||||
| 8 | W10267937 | Harness, Jumper |
|
- | |||||
| 9 | W10117943 | Badge |
|
- | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W10450060 | Cable, User Interface |
|
- | |||||
| 12 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 13 | WPW10251394 | Knob, Control (Replaces: W10251394) |
|
$ 55.94 | |||||
| 13 | W10389283 | Ui, Center (includes Knob) |
|
- | |||||
| 14 | WPW10251394 | Knob Assembly (chrome) (Replaces: W10251394) |
|
$ 55.94 | |||||
| 14 | W10450060 | Cable, Ui |
|
- | |||||
| 15 | W10388453 | User Interface, Center (includes Knob) |
|
- |
