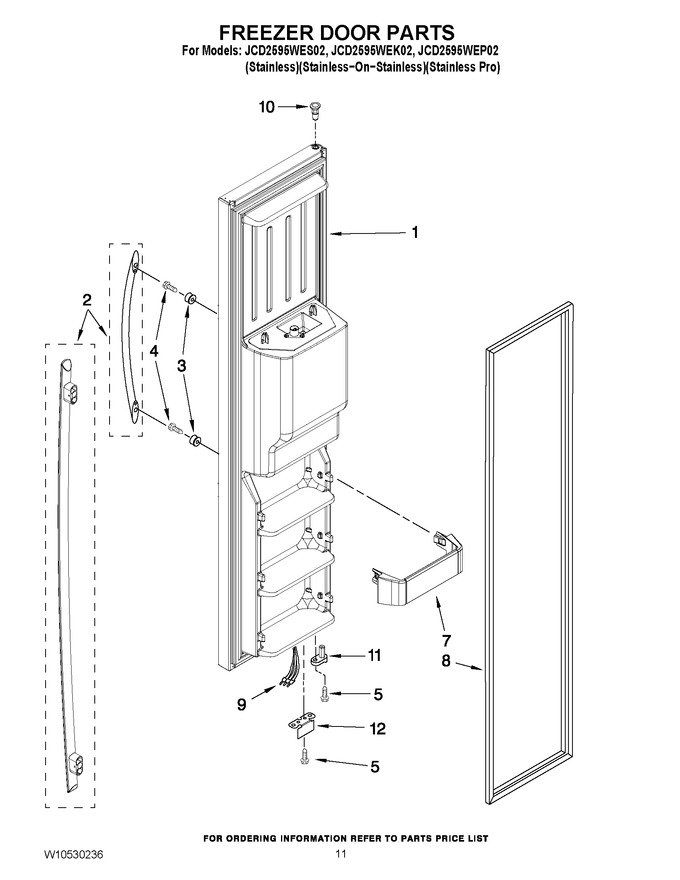

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10318312 | Freezer Door (includes No.8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 2 | WPW10183428 | Handle Assy (stainless) (Replaces: W10183428) |
|
Immediately | $ 337.11 | ||||
| 2 | W10214166 | Handle Assy (stainless Pro) |
|
$ 173.58 | |||||
| 3 | WPW10170540 | Stud, Handle (Replaces: 2326259) |
|
Immediately | $ 8.51 | ||||
| 4 | W10141596 | Screw |
|
$ 9.22 | |||||
| 5 | WPW10142233 | Screw (Replaces: W10142233) |
|
$ 8.93 | |||||
| 7 | 2223559 | Shelf Bin (3) |
|
$ 28.77 | |||||
| 8 | 2326340 | Door Gasket, Magnetic (apollo Grey) |
|
- | |||||
| 9 | 2310226 | Wire Assy, Door |
|
- | |||||
| 10 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 11 | 2307050 | Door Closer, (upper Cam) |
|
$ 39.47 | |||||
| 12 | 2306940 | Bracket, Door Stop (chrome) |
|
$ 101.93 |
