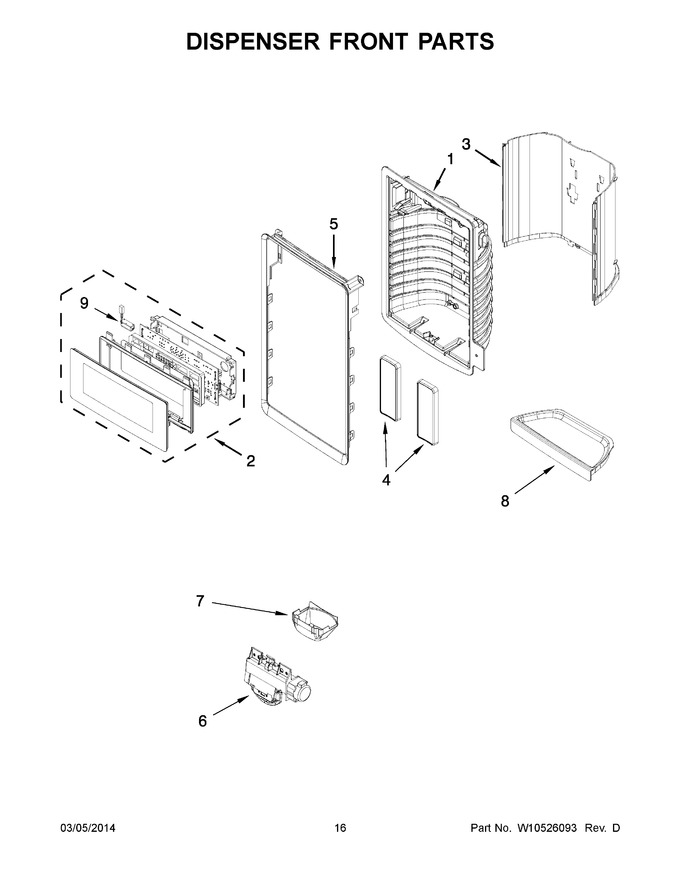

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10549068 | Assembly, User Interface (white) |
|
- | |||||
| 2 | W10549067 | Assembly, User Interface (stainless) |
|
- | |||||
| 2 | W10878995 | Assembly, User Interface (black) (Replaces: W10549041) |
|
$ 433.14 | |||||
| 3 | W10520869 | Wall, Dispenser False (grey) |
|
$ 121.46 | |||||
| 3 | W10520868 | Wall, Dispenser False (black) |
|
- | |||||
| 3 | W10520867 | Wall, Dispenser False (white) |
|
$ 92.40 | |||||
| 4 | WPW10436679 | Assembly, Pad (white) (Replaces: W10436679) |
|
$ 87.47 | |||||
| 4 | W10436677 | Assembly, Pad (black) |
|
- | |||||
| 4 | W10436678 | Assembly, Pad (stainless) |
|
- | |||||
| 5 | W10587907 | Ring, Trim (white) |
|
$ 29.12 | |||||
| 5 | W10587910 | Ring, Trim (stainless) (Replaces: W10423497) |
|
$ 133.26 | |||||
| 5 | W10322864 | Ring, Trim (black) |
|
- | |||||
| 6 | WPW10577864 | Assembly, Seperator (Replaces: W10577864) |
|
Immediately | $ 157.84 | ||||
| 7 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 23.94 | ||||
| 8 | W10410105 | Tray, Drip (grey) |
|
$ 104.16 | |||||
| 8 | WPW10322873 | Tray, Drip (black) (Replaces: W10322873) |
|
$ 58.53 | |||||
| 8 | W10322872 | Tray, Drip (white) |
|
- | |||||
| 9 | W11290115 | Led Assembly (Replaces: W10470750) |
|
$ 84.45 |
