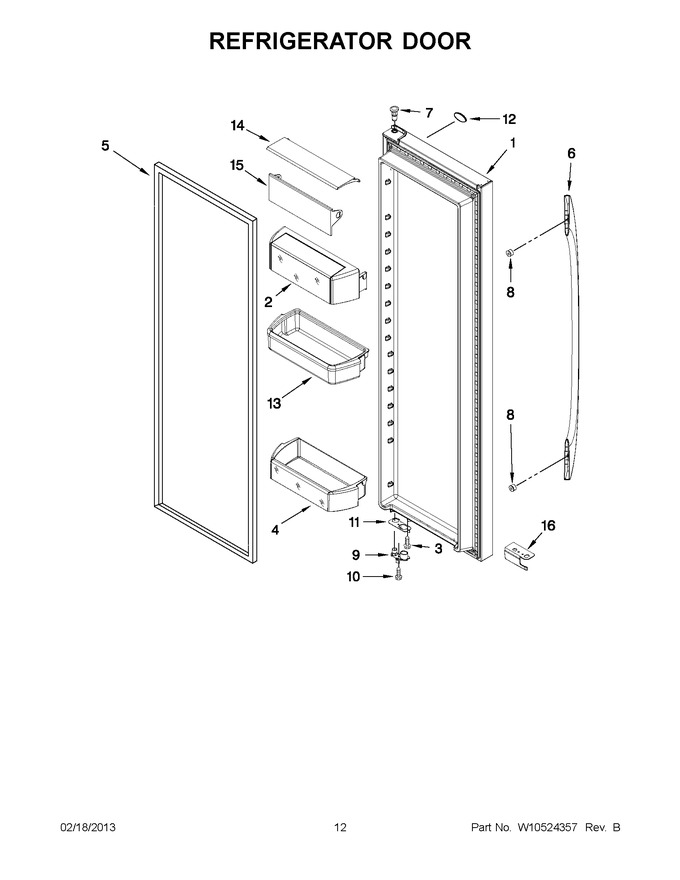

Diagram #	Part Number	Description	Availability	Ships	Price
1	W10397050	Refrigerator Door (includes Item 5)	Appelez-nous	-
1	W10373134	Refrigerator Door (includes Item 5)	Appelez-nous	-
1	W10373135	Refrigerator Door (includes Item 5)	Appelez-nous	-
2	WPW10324760	Door, Compartment Assembly (Replaces: W10316889)			$ 85.60
3	WPW10296816	Screw (Replaces: W10296816)			$ 8.06
4	WPW10527272	Door Bin, Gallon (Replaces: W10527272)			$ 83.80
5	WPW10247884	Door Gasket, Magnetic (beige) (Replaces: W10247884)			$ 322.97
5	WPW10249912	Door Gasket, Magnetic (black) (Replaces: W10249912)			$ 329.18
5	W10355582	Door Gasket, Magnetic (grey) (Replaces: W10249916)			$ 341.26
6	WPW10439228	Handle (white) (Replaces: W10439228)			$ 249.66
6	WPW10439229	Handle (black) (Replaces: W10439229)			$ 179.46
6	WPW10439132	Handle (grey) (Replaces: W10439132)			$ 289.38
7	WP2182181	Thimble, Top (Replaces: 2200086)			$ 8.15
8	WPW10661886	Screw (Replaces: W10460893)		Immediately	$ 12.88
9	WPW10257203	Door Closer, Upper Cam (grey) (Replaces: W10257203)			$ 12.96
9	WPW10257201	Door Closer, Upper Cam (black) (Replaces: W10257201)			$ 12.93
9	WPW10248011	Door Closer, Upper Cam (white) (Replaces: W10248011)			$ 12.93
10	WPW10296804	Screw (Replaces: W10296804)			$ 11.39
11	W11037957	Black (Replaces: W10367462)			$ 80.24
12	WPW10170766	Badge, Standard Maytag (Replaces: W10170766)		Immediately	$ 70.50
13	WPW10308388	Door Bin, Shallow (Replaces: W10308388)			$ 77.97
14	WPW10316883	Lid, Utility Bin (Replaces: W10316883)			$ 67.67
15	WPW10316885	Window, Door Compartment (Replaces: W10316885)			$ 75.42
16	W11661847	Cover, Door Stop (grey) (Replaces: W10257218)		Immediately	$ 31.71
16	W10789144	Cover, Door Stop (white) (Replaces: W10248013)			$ 19.38
16	W10257216	Cover, Door Stop (black)	Appelez-nous	-
