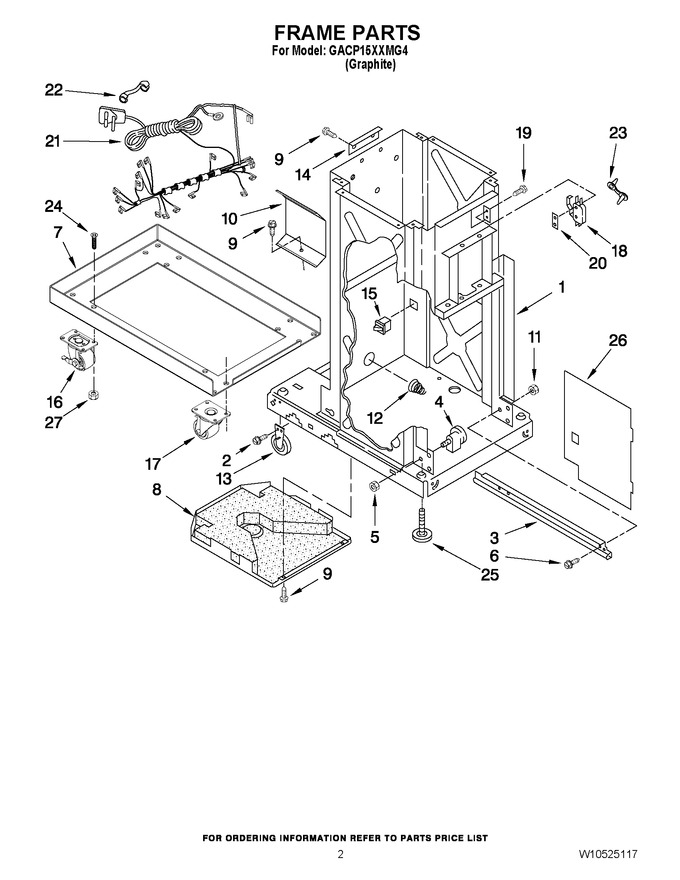

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Frame (not A Serviceable Part)		Appelez-nous	-
2	WP3351614		Screw   (Replaces: 780034)			Immediately	$ 7.30
3	W11722978		Frame, Slide (r.h.)   (Replaces: 9870976)				$ 141.33
3	WP9870975		Frame, Slide (l.h.)   (Replaces: 9870975)				$ 112.70
4	882688		Bearing, Roller   (Replaces: 4153788)				$ 21.19
5	WP776356		Locknut   (Replaces: 776356)				$ 8.53
6	WP486754		Screw   (Replaces: 777458)				$ 8.01
7	9871958		Base, Frame		Appelez-nous	-
8	WP780437		Pan, Bottom   (Replaces: 9870167)				$ 316.61
9	WP489478		Screw   (Replaces: W10001260)				$ 8.18
10	9870867		Shield, Slide Track		Appelez-nous	-
11	W11759042		Nut   (Replaces: 3400938)		Appelez-nous	-
12	WP777180		Spring, Container   (Replaces: 777180)				$ 97.93
13	W11023674		Wheel, Leveler   (Replaces: 9870585)				$ 54.05
14	775668		Angle, Top Bracket		Appelez-nous	-
15	W11243179		Switch, Drawer Safety   (Replaces: 4149377)				$ 74.74
16	9871956		Caster, Rigid		Appelez-nous	-
17	9871957		Caster, Swivel		Appelez-nous	-
18	WP777811		Switch, Top Limit & Directional   (Replaces: 777811)			Immediately	$ 116.62
19	777849		Screw				$ 7.36
20	777850		Plate, Nut				$ 77.13
21	W10279451		Wiring Harness & Power Cord		Appelez-nous	-
22	9872015		Bushing, Cord		Appelez-nous	-
23	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
24	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.78
25	WPW10001130		Foot, Leveler   (Replaces: 775526)			Immediately	$ 7.80
26	WP9870444		Panel, Inner   (Replaces: 9870444)				$ 101.92
27	WP486692		Nut   (Replaces: 486692)				$ 8.43
