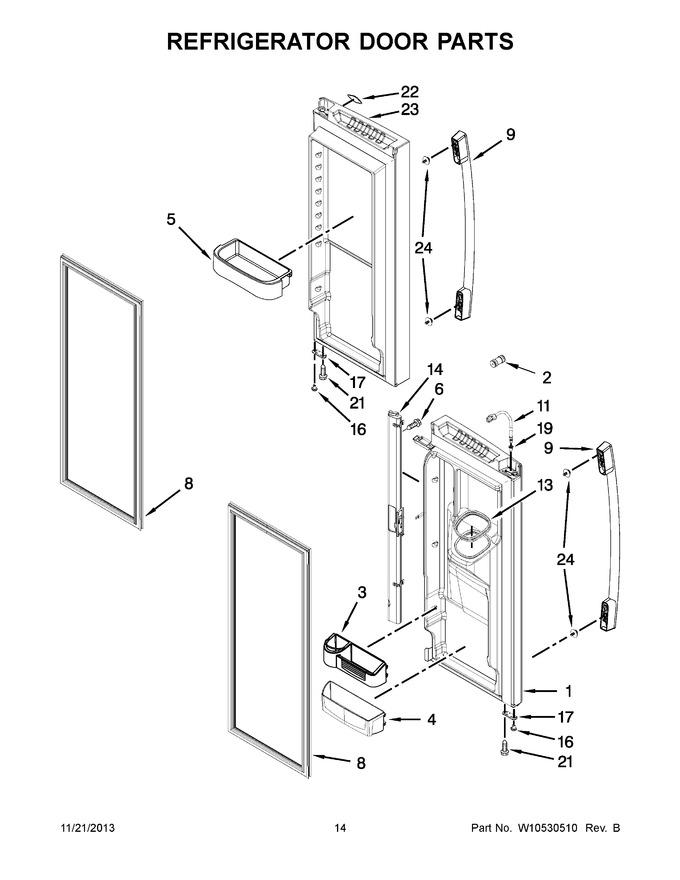

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107322SQ | Door, Left (stainless) (Replaces: 13107322S) |
|
$ 1,115.55 | |||||
| 2 | WPW10334458 | Connector, Water Tube (Replaces: W10334458) |
|
$ 22.67 | |||||
| 3 | WPW10323808 | Bucket, Upper (Replaces: W10323808) |
|
Immediately | $ 81.50 | ||||
| 4 | WPW10212139 | Bucket, Small (Replaces: W10212139) |
|
Immediately | $ 84.83 | ||||
| 5 | WPW10224961 | Bucket, Gallon (Replaces: W10224961) |
|
Immediately | $ 95.08 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830055 | Gasket, Door (grey) (Replaces: W10443238) |
|
Immediately | $ 283.65 | ||||
| 9 | W11351147 | Handle, Door (stainless) (Replaces: W10223019K) |
|
$ 198.22 | |||||
| 11 | W10296451 | Tube, Water |
|
$ 53.54 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 14 | 12732509W | Mullion, Door (white) |
|
- | |||||
| 16 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 17 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 19 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 21 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 22 | WPW10393265 | Badge (grey) (Replaces: W10393265) |
|
Immediately | $ 78.57 | ||||
| 23 | 13107316SQ | Door, Right (stainless) (Replaces: 13107316S) |
|
$ 1,118.12 | |||||
| 24 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 |
