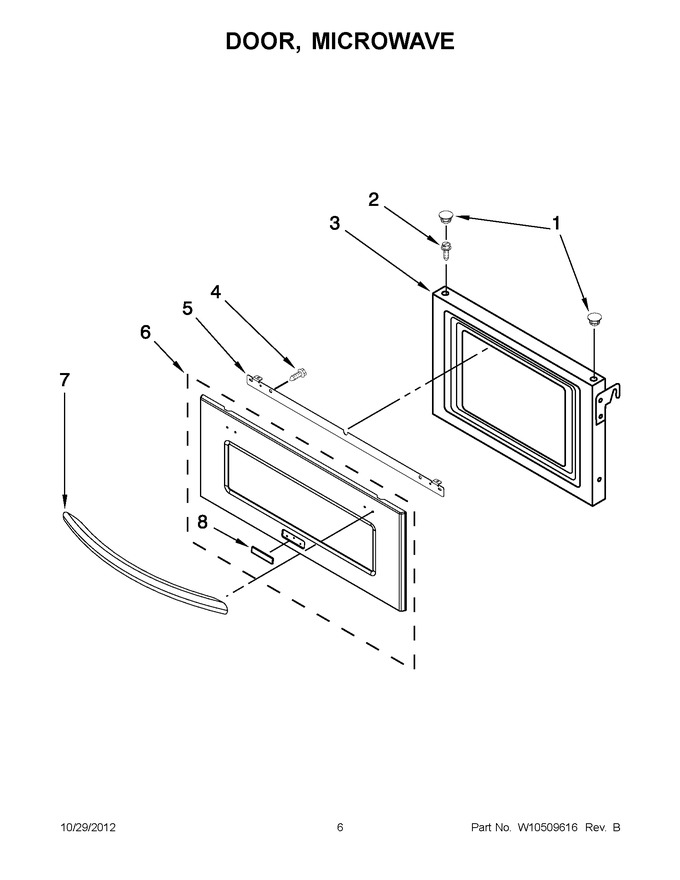

03 - Door, Microwave
04 - Cabinet And Stirrer Parts
05 - Internal Microwave Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Cap, Screw (Replaces: 8304588BL) |
|
$ 12.34 | |||||
| 2 | WP7101P246-60 | Screw (Replaces: W10143304) |
|
$ 8.24 | |||||
| 3 | W10486210 | Door, Inner |
|
$ 218.34 | |||||
| 4 | WP8533988 | Screw 8-32 X .750 Tr Sc Black (Replaces: 8533988) |
|
Immediately | $ 8.78 | ||||
| 5 | W10359769 | Foam, Handle |
|
$ 14.76 | |||||
| 6 | W10585730 | Glass Assembly, Outer Door (stainless) (Replaces: W10420952) |
|
$ 313.58 | |||||
| 7 | WPW10289076 | Handle, Door (stainless) (Replaces: W10289076) |
|
$ 334.61 | |||||
| 8 | WPW10243391 | Nameplate (stainless) (Replaces: W10243391) |
|
$ 58.31 |
