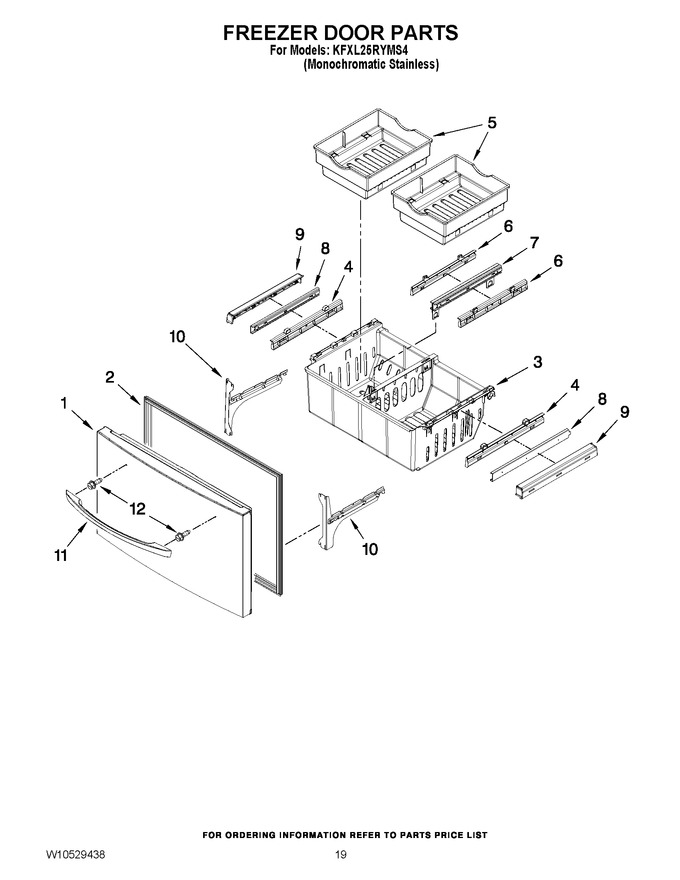

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107111SQ		Freezer Door (mono Stainless)   (Replaces: 13107111S)				$ 1,104.61
2	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10443322)				$ 323.60
3	12924801SP		Bin, Lower		Appelez-nous	-
4	W10166742		Adapter, Bin (outer)   (Replaces: 12925403SP)				$ 98.12
5	WP12924903		Bin, Upper   (Replaces: 12924903)				$ 132.30
6	12925404SP		Adapter, Bin (inner)				$ 45.32
7	WPW10235357		Bracket/glide Assembly   (Replaces: W10235357)			Immediately	$ 330.98
8	WPW10235367		Glide, Upper   (Replaces: W10235367)				$ 313.43
9	W10826788		Retainer, Glide (left)   (Replaces: 12925501SP)				$ 57.50
9	WP67006368		Retainer, Glide (right)   (Replaces: 12925502SP)				$ 192.90
10	WPW10330994		Bracket, Door Slide (left)   (Replaces: W10330994)			Immediately	$ 169.02
10	WPW10330995		Bracket, Door Slide (right)   (Replaces: W10330995)			Immediately	$ 340.61
11	WPW10314522K		Handle-freezer (stainless)   (Replaces: W10314522)				$ 280.70
12	WPW10661886		Screw, Handle   (Replaces: W10303465)			Immediately	$ 12.88
