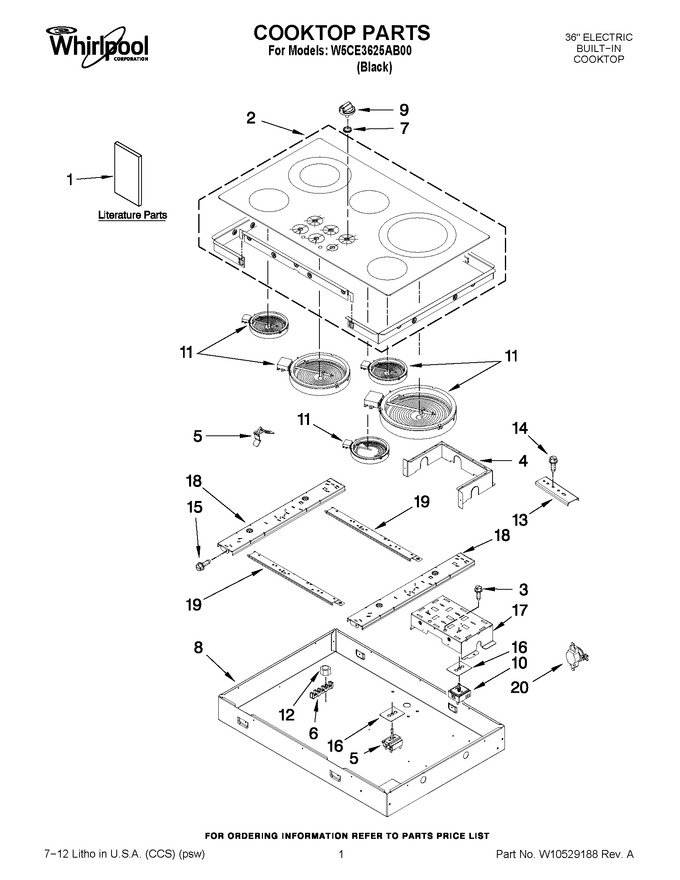

01 - Cooktop Parts
02 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10346695 | Installation Instructions |
|
- | |||||
| 1 | W10346696 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10488777 | Wiring Diagram |
|
- | |||||
| 2 | W10575101 | Cooktop (Replaces: W10484129) |
|
- | |||||
| 3 | W10443110 | Screw |
|
Immediately | $ 15.25 | ||||
| 4 | W10311897 | Shield, Switch |
|
- | |||||
| 5 | WPW10225448 | Spring, Push-in (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 6 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 35.17 | ||||
| 7 | WPW10293874 | Grommet, Infinite Switch (Replaces: W10293874) |
|
Immediately | $ 8.46 | ||||
| 8 | W10484146 | Box, Burner |
|
- | |||||
| 9 | WPW10316662 | Knob, Control (Replaces: W10316662) |
|
Immediately | $ 22.25 | ||||
| 10 | WPW10244639 | Switch, Infinite (lr) (Replaces: W10244639) |
|
Immediately | $ 141.22 | ||||
| 10 | WP74007840 | Switch, Infinite (lf) (Replaces: 7403P755-60) |
|
Immediately | $ 190.46 | ||||
| 10 | WPW10326246 | Switch, Infinite (rf) (Replaces: W10326246) |
|
$ 153.02 | |||||
| 10 | W10431995 | Switch, Infinite (rr) |
|
$ 159.41 | |||||
| 10 | W11106342 | Switch, Infinite (ctr) (Replaces: W10312186) |
|
$ 142.76 | |||||
| 11 | W11171119 | Element, Surface (lf/rf 1200w) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 11 | WPW10245539 | Element, Surface (ctr 100w) (Replaces: W10245539) |
|
$ 152.59 | |||||
| 11 | W11047722 | Element, Surface (lr 2500w) (Replaces: 8273992) |
|
Immediately | $ 132.46 | ||||
| 11 | WPW10275049 | Element, Surface (rr 2500/1200w) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 12 | WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 16 | 3183956 | Gasket, Switch |
|
$ 48.77 | |||||
| 17 | W11215839 | Plate, Switch (Replaces: W10291159) |
|
- | |||||
| 18 | W10457926 | Rail, Vertical |
|
- | |||||
| 19 | W10340199 | Rail, Horizontal |
|
- | |||||
| 20 | W10464566 | Switch, Tod |
|
Immediately | $ 195.77 |
