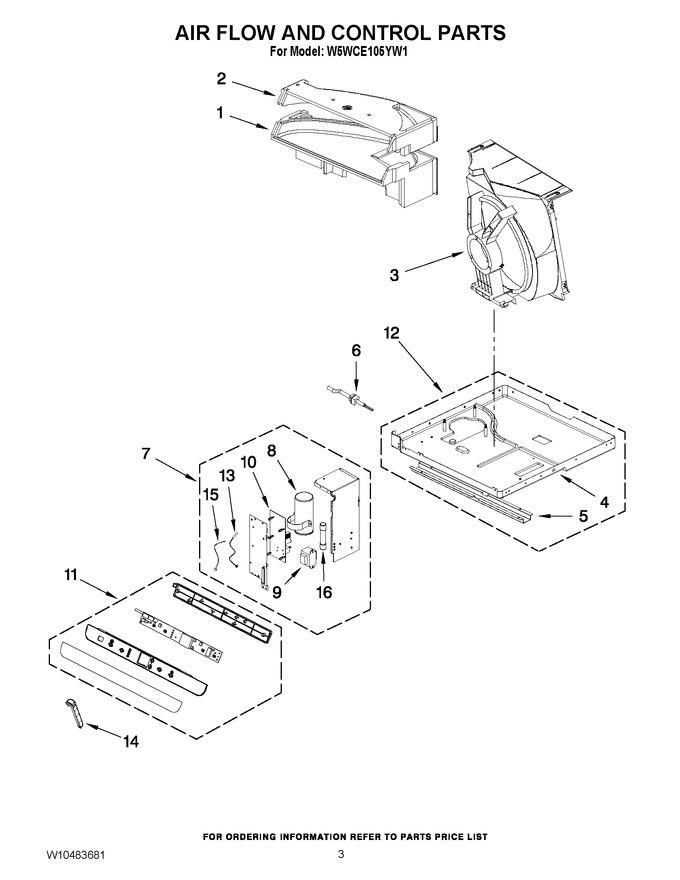

02 - Air Flow And Control Parts
03 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10484827 | Scroll |
|
- | |||||
| 2 | W10484828 | Housing |
|
- | |||||
| 3 | W10362781 | Rear Clapboard |
|
- | |||||
| 4 | W10484830 | Base |
|
- | |||||
| 5 | W10368216 | Guide,lower |
|
- | |||||
| 6 | W10362771 | Power Cord |
|
- | |||||
| 7 | W10484831 | Control Box |
|
- | |||||
| 8 | W10484832 | Capacitor |
|
- | |||||
| 9 | WP8215051 | Transformer (Replaces: 8215051) |
|
$ 185.28 | |||||
| 10 | WPW10362790 | Main Board (Replaces: W10362790) |
|
$ 206.24 | |||||
| 11 | WPW10362223 | Display Board (Replaces: W10362223) |
|
$ 203.95 | |||||
| 12 | W10529675 | Chassis Assy |
|
- | |||||
| 13 | 8209739 | Tube Sensor |
|
- | |||||
| 14 | W10361862 | Remote Controller |
|
- | |||||
| 15 | W10362770 | Amb Temp Sensor |
|
- | |||||
| 16 | W10487251 | Fuse |
|
$ 27.35 |
