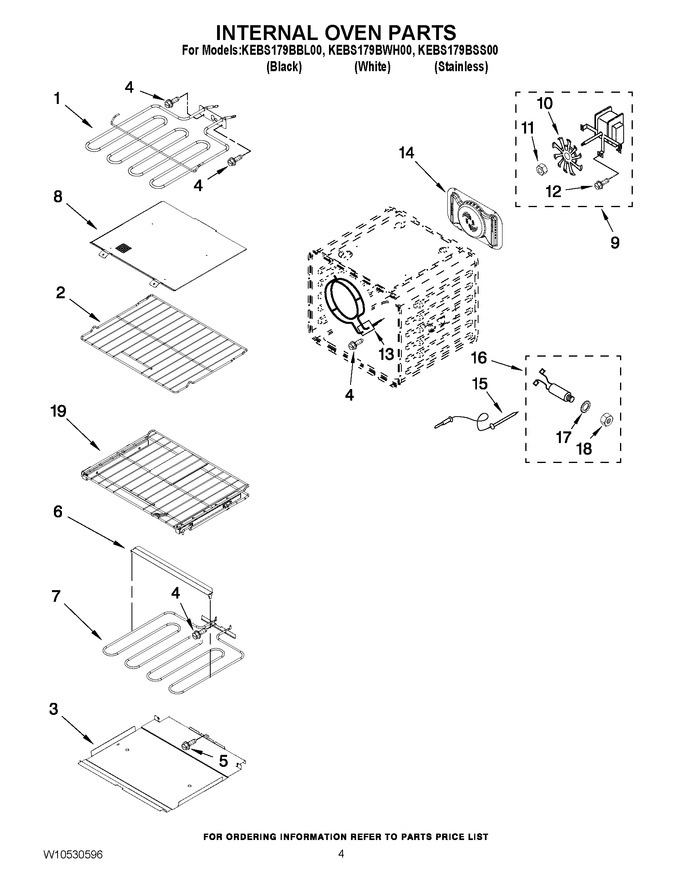

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10804429 | Element, Broil (Replaces: W10317383) |
|
Immediately | $ 152.91 | ||||
| 2 | WPW10554529 | Rack, Oven (Replaces: W10526029) |
|
$ 173.24 | |||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 195.83 | |||||
| 4 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 14.23 | |||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 6 | W10282957 | Tray, Hidden Bake Crossbar |
|
$ 47.47 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W10282948) |
|
Immediately | $ 102.53 | ||||
| 8 | W11290999 | Tray, Broil (Replaces: W10318164) |
|
$ 210.95 | |||||
| 9 | W10794022 | Fan, Convection (Replaces: W10116228) |
|
Immediately | $ 214.63 | ||||
| 10 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 11 | WPW10116349 | Nut, Acorn (Replaces: W10116349) |
|
$ 21.78 | |||||
| 12 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 13 | W11678579 | Element, Ring (Replaces: W10317384) |
|
Immediately | $ 121.00 | ||||
| 14 | W11234761 | Baffle, Bow Tie (Replaces: W10359277) |
|
$ 237.00 | |||||
| 15 | WP9755542 | Probe, Meat (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 16 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 108.02 | ||||
| 17 | WP9755547 | Lockwasher (Replaces: 9755547) |
|
$ 6.41 | |||||
| 18 | WP9755546 | Hex Nut (Replaces: 9755546) |
|
$ 7.30 | |||||
| 19 | W10282972 | Rack, Sliding |
|
- |
