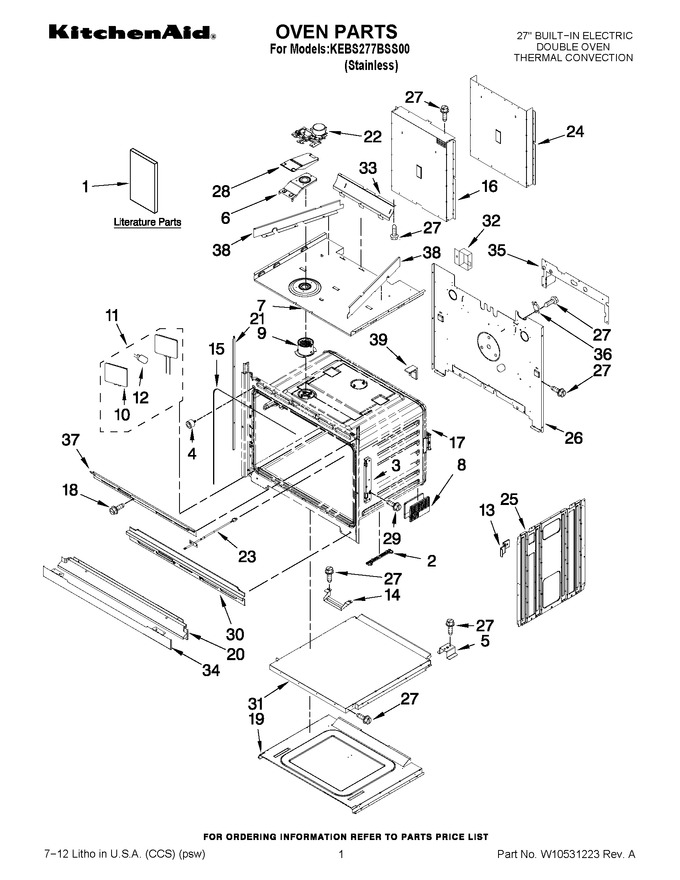

01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10354193 | Use & Care Guide |
|
- | |||||
| 1 | W10492435 | Tech Sheet |
|
- | |||||
| 1 | W10351242 | Installation Instructions |
|
- | |||||
| 2 | WPW10318220 | Spacer, Base (Replaces: W10318220) |
|
$ 26.76 | |||||
| 3 | W11613828 | Hinge Receiver (Replaces: W10282975) |
|
Immediately | $ 57.49 | ||||
| 4 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 11.01 | |||||
| 5 | W10213759 | Exhaust,vent Slope |
|
- | |||||
| 6 | W10616809 | Base, Exhaust Vent (Replaces: W10282984) |
|
$ 32.24 | |||||
| 7 | W10282981 | Chassis, Top |
|
- | |||||
| 8 | W10821321 | Foot, Base (Replaces: W10318219) |
|
$ 33.51 | |||||
| 9 | W11240525 | Tube, Vent (Replaces: W10282946) |
|
$ 25.54 | |||||
| 10 | WPW10519866 | Lens, Light (Replaces: W10472386) |
|
$ 96.33 | |||||
| 11 | WPW10519866 | Assembly, Oven Light (Replaces: W10519866) |
|
$ 96.33 | |||||
| 12 | WPW10472384 | Bulb, Light (Replaces: W10472384) |
|
Immediately | $ 92.48 | ||||
| 13 | W10347649 | Spacers, Front |
|
$ 15.02 | |||||
| 14 | W10351308 | Chassis, Bottom Duct Spacer |
|
$ 58.73 | |||||
| 15 | W10856596 | Gasket, Door (Replaces: W10282961) |
|
Immediately | $ 105.26 | ||||
| 16 | W10318196 | Chassis, Back Duct Upper |
|
$ 218.89 | |||||
| 17 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 18 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 8.30 | |||||
| 19 | W10282901 | Base, Chassis |
|
$ 177.43 | |||||
| 20 | WPW10327376 | Assembly, Bottom Vent (Replaces: W10327376) |
|
$ 561.46 | |||||
| 21 | W10536161 | Mounting Rail,side (left) (Replaces: W10504410) |
|
$ 50.62 | |||||
| 21 | W10536161 | Mounting Rail,side (right) (Replaces: W10504409) |
|
$ 50.62 | |||||
| 22 | W10883049 | Latch, Mortorized (Replaces: W10314880) |
|
Immediately | $ 306.46 | ||||
| 23 | WP74008369 | Sensor (Replaces: 7430P043-60) |
|
Immediately | $ 132.94 | ||||
| 24 | W10283000 | Duct, Chassis Back |
|
- | |||||
| 25 | W10318190 | Side, Chassis |
|
$ 117.20 | |||||
| 26 | W10282991 | Back, Chassis |
|
- | |||||
| 27 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 28 | W10616810 | Exhaust, Vent Cover (Replaces: W10282985) |
|
$ 69.95 | |||||
| 29 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 9.22 | |||||
| 30 | W10283041 | Vent, Center 27`` |
|
Immediately | $ 155.83 | ||||
| 31 | WPW10283008 | Chassis, Bottom Duct (Replaces: W10283008) |
|
$ 220.05 | |||||
| 32 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 33 | W10351258 | Bracket, Blower Deflector |
|
- | |||||
| 34 | WPW10327378 | Trim, Bottom Vent (Replaces: W10327378) |
|
Immediately | $ 224.77 | ||||
| 35 | W10509165 | Bracket, U-shape |
|
- | |||||
| 36 | WP4449751 | Thermostat (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 37 | W10283037 | Vent, Top 27`` |
|
Immediately | $ 148.31 | ||||
| 38 | W10507009 | Chassis, Deflector |
|
- | |||||
| 39 | WPW10323551 | Bumper, Rail (Replaces: W10323551) |
|
$ 8.41 | |||||
| NI | W10520716 | Insulation, Wrap |
|
- | |||||
| NI | W11688333 | Insulation, Back (Replaces: W10282945) |
|
- |
