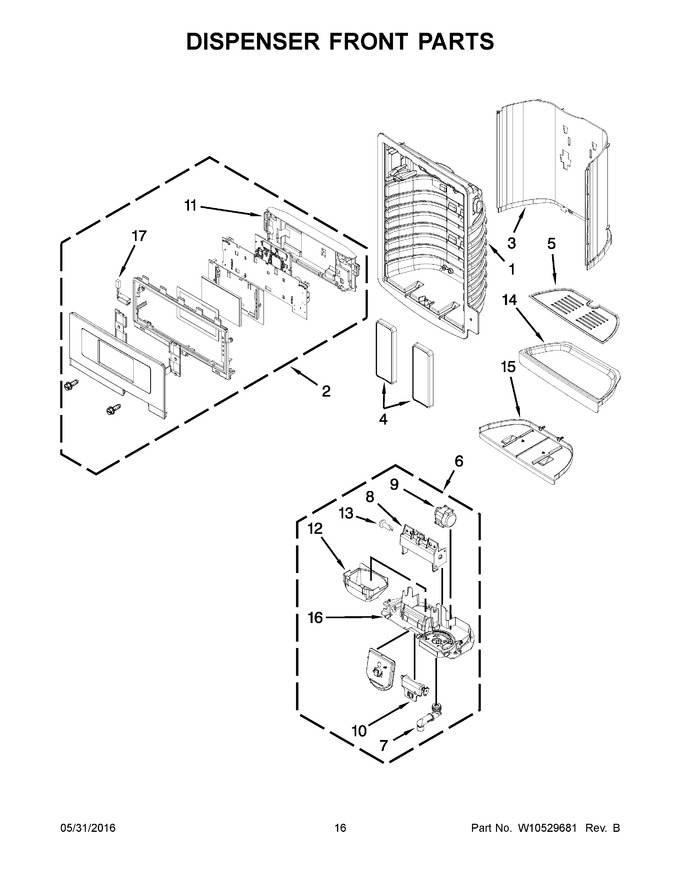

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10509460		U I Assemly (white)		Appelez-nous	-
3	W11045975		False Wall Dispenser (white)   (Replaces: W10215699)		Appelez-nous	-
4	W10353846		Assembly, Pad (white)				$ 280.01
5	W10215957		Grate, Drip Tray				$ 52.76
6	WPW10353552		Assembly, Seperator   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
11	W10254277		Cover, Board		Appelez-nous	-
12	WPW10435760		Guide, Ice   (Replaces: W10339578)			Immediately	$ 23.94
13	W10174818		Clip, Motor Coupling		Appelez-nous	-
14	W11045970		Tray, Dispenser (white)   (Replaces: W10267869)				$ 65.93
15	W10267860		Slide, Tray Dispenser (white)		Appelez-nous	-
16	W10278987		Separator		Appelez-nous	-
17	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
14A	W11045971		Tray, Dispenser (black)   (Replaces: W10267870)				$ 65.90
14B	WPW10305897		Tray, Dispenser (stainless)   (Replaces: W10305897)				$ 84.81
15A	W10267861		Slide, Tray Dispenser (black)				$ 74.39
15B	WPW10267863		Slide, Tray Dispenser (grey)   (Replaces: W10267863)				$ 73.22
2A	W10509459		U I Assemly (black)		Appelez-nous	-
2B	WPW10509458		U I Assemly (stainless)   (Replaces: W10509458)				$ 461.09
3A	W11045976		False Wall Dispenser (black)   (Replaces: W10233560)				$ 43.18
3B	W10305890		False Wall Dispenser (stainless)				$ 92.99
4A	W11661207		Assembly, Pad (black)   (Replaces: W10353847)				$ 66.19
4B	WPW10353848		Assembly, Pad (grey)   (Replaces: W10353848)				$ 321.56

    View Diagram in Separate Window       Print Part List
