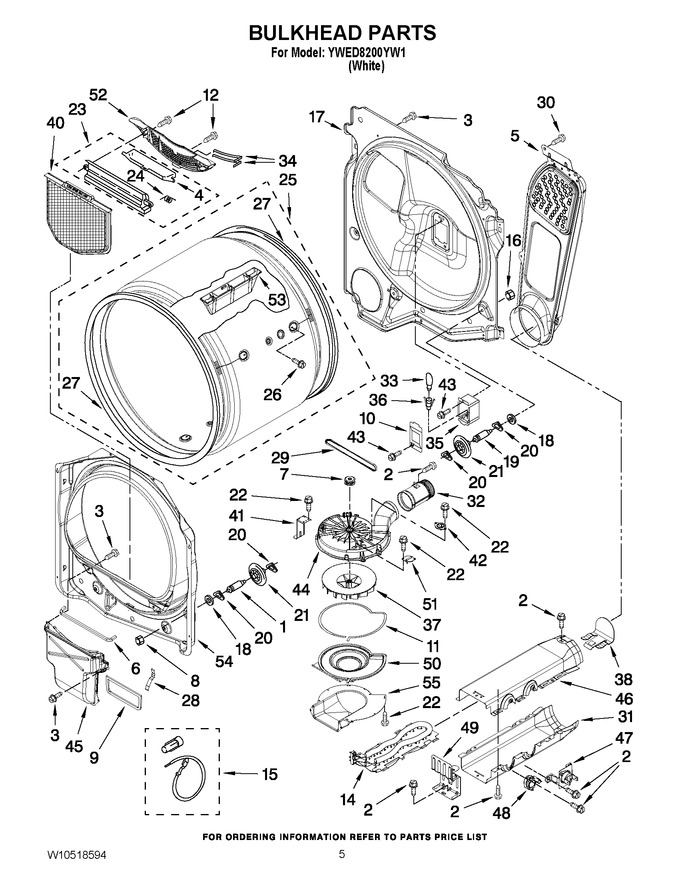

03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: W10359271) |
|
Immediately | $ 55.99 | ||||
| 2 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 3 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 4 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 192.52 | ||||
| 5 | 8544730 | Air Duct Assembly |
|
$ 231.82 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.53 | ||||
| 7 | WP8544739 | Pulley, Blower (Replaces: 8544739) |
|
$ 119.94 | |||||
| 8 | W11812294 | Nut, 3/8 X 16 (r.h.) (Replaces: 3934666) |
|
$ 11.49 | |||||
| 9 | 8544721 | Seal, Lint Duct |
|
$ 5.65 | |||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 29.38 | |||||
| 11 | WP8573068 | Seal, Blower Cover (Replaces: 8573068) |
|
$ 83.32 | |||||
| 12 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 14 | W10044460 | Heater Element |
|
$ 68.98 | |||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 16 | WPW10080190 | Nut,3/8 X 16(l.h.) (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 17 | 8557234 | Bulkhead, Rear |
|
$ 181.14 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: W10359272) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Tri Ring (Replaces: 690997) |
|
Immediately | $ 8.71 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 25.65 | ||||
| 22 | 3350424 | Screw |
|
$ 11.45 | |||||
| 23 | W11129408 | Outlet Housing Assembly (Replaces: 3394985) |
|
$ 51.20 | |||||
| 24 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.12 | |||||
| 25 | W10549614 | Complete Drum Assembly (Replaces: 8557269) |
|
$ 450.37 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 27 | 280140 | Seal, Drum (Replaces: W10116344) |
|
Immediately | $ 77.20 | ||||
| 28 | 8573070 | Clip, Lint Duct |
|
$ 12.41 | |||||
| 29 | WP8544742 | Blower Belt (Replaces: 8544742) |
|
Immediately | $ 49.50 | ||||
| 30 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 31 | 8544770 | Housing-tab Heater Box |
|
$ 75.92 | |||||
| 32 | 8544755 | Exhaust Pipe |
|
$ 43.67 | |||||
| 33 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 13.37 | ||||
| 34 | WP3387223 | Electrode, Sensor (Replaces: 3387223) |
|
Immediately | $ 6.25 | ||||
| 35 | 3977373 | Bracket, Drum Light |
|
$ 99.97 | |||||
| 36 | W11222979 | Socket Assembly (Replaces: W10214261) |
|
Immediately | $ 106.91 | ||||
| 37 | WP8544737 | Wheel, Blower (Replaces: 8544737) |
|
Immediately | $ 139.36 | ||||
| 38 | 8544776 | Flange, Heater Box |
|
$ 17.11 | |||||
| 40 | W10120998 | Lint Screen (Replaces: W10049370) |
|
$ 74.66 | |||||
| 41 | 8544741 | Bracket, Blower Housing |
|
$ 38.71 | |||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 39.25 | ||||
| 43 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 44 | W10256512 | Housing, Blower |
|
$ 70.10 | |||||
| 45 | 8544786 | Lint Duct Assembly |
|
$ 91.17 | |||||
| 46 | WP8544769 | Housing-slot Heater Box (Replaces: 8544769) |
|
$ 156.51 | |||||
| 47 | 280148 | Thermal Cut-off (includes Item 48) |
|
Immediately | $ 60.85 | ||||
| 48 | WP8557403 | Thermostat, High Limit (Replaces: 8557403) |
|
Immediately | $ 85.90 | ||||
| 49 | 8544729 | Bracket, Heater Box |
|
- | |||||
| 50 | 8544719 | Blower, Cover |
|
$ 76.29 | |||||
| 51 | WP3390719 | Thermal Fuse (Replaces: 3390719) |
|
Immediately | $ 28.41 | ||||
| 52 | W11117302 | Grille Outlet (Replaces: 8544723) |
|
Immediately | $ 237.34 | ||||
| 53 | 8563860 | Baffle, Drum |
|
$ 140.85 | |||||
| 54 | WP8557244 | Bulkhead, Front (Replaces: 8557244) |
|
$ 300.21 | |||||
| 55 | 8544718 | Duct, Inlet Blower |
|
$ 72.39 |
