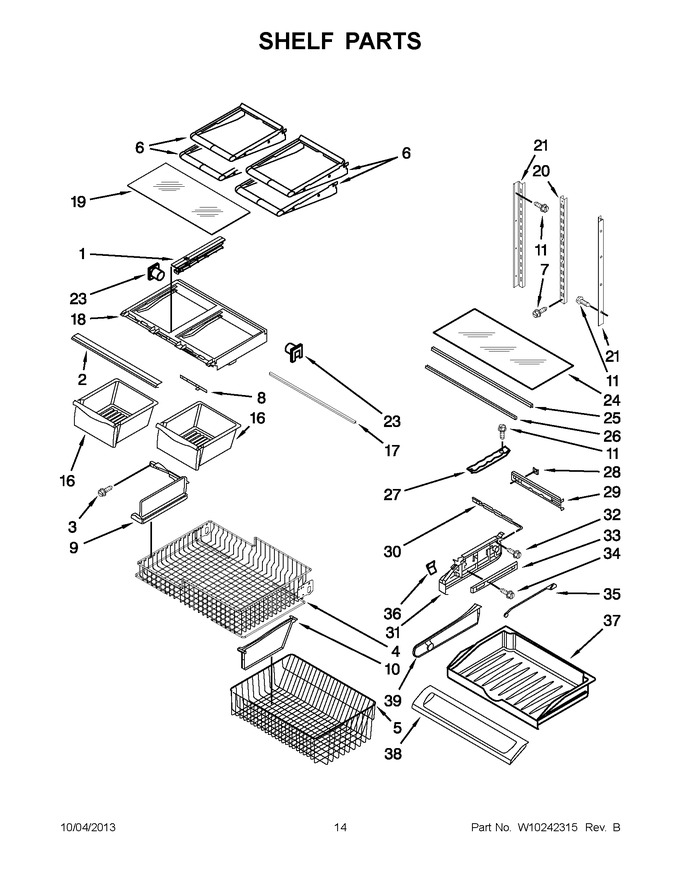

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10326469 | Rail, Center Crisper (Replaces: 67004514) |
|
Immediately | $ 33.37 | ||||
| 2 | 67004636 | Trim, Crisper |
|
- | |||||
| 3 | 67006608 | Screw |
|
- | |||||
| 4 | 67004987 | Basket, Freezer (upper) |
|
$ 244.35 | |||||
| 5 | WPW10503184 | Basket, Freezer (lower) (Replaces: 67006025) |
|
$ 250.08 | |||||
| 6 | 67004637 | Shelf, Glide Out |
|
$ 113.49 | |||||
| 7 | W10709795 | Screw (Replaces: 67006360) |
|
$ 13.79 | |||||
| 8 | WP67005864 | Slide, Humidity Control (Replaces: 67005864) |
|
Immediately | $ 8.20 | ||||
| 9 | 67004127 | Divider, Basket (upper) |
|
$ 10.10 | |||||
| 10 | 67006644 | Divider, Basket (lower) |
|
- | |||||
| 11 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 16 | WP67004515 | Pan, Crisper (Replaces: 67004515) |
|
Immediately | $ 176.72 | ||||
| 17 | WP12642303WD | Brace, Crisper Cover (Replaces: 67002748) |
|
$ 112.26 | |||||
| 18 | WP67003854 | Frame, Crisper (Replaces: 67003854) |
|
Immediately | $ 289.77 | ||||
| 19 | WP67006704 | Glass, Crisper (Replaces: 67006704) |
|
$ 263.43 | |||||
| 20 | 67001073 | Ladder, Center |
|
$ 56.89 | |||||
| 21 | 67002489 | Ladder, L/r Side |
|
$ 71.09 | |||||
| 23 | WP12603701 | Support, Crisper Frame (Replaces: 12603701) |
|
$ 10.83 | |||||
| 24 | 67002761 | Glass, Pantry |
|
$ 103.45 | |||||
| 25 | W11812285 | Extrusion, Glass Support (Replaces: 67006010) |
|
$ 53.33 | |||||
| 26 | WP12227305WD | Brace, Pantry (Replaces: 67002330) |
|
$ 108.36 | |||||
| 27 | WP67001719 | Track, Drawer (Replaces: 67001719) |
|
Immediately | $ 8.99 | ||||
| 28 | 67002329 | Gasket, Pantry |
|
$ 22.09 | |||||
| 29 | 12656202 | Housing, Control (Replaces: 67005625) |
|
$ 148.84 | |||||
| 30 | WP67003793 | Slide, Pantry (Replaces: 67003793) |
|
Immediately | $ 78.49 | ||||
| 31 | W10874836 | Endcap, Pantry (right Hand) (Replaces: 67005858) |
|
Immediately | $ 38.43 | ||||
| 31 | W10874836 | Endcap, Pantry (left Hand) (Replaces: 67005863) |
|
Immediately | $ 38.43 | ||||
| 32 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 33 | WPW10235370 | Glide, Drawer (Replaces: 67007026) |
|
Immediately | $ 298.06 | ||||
| 34 | WP67006415 | Screw, Adapter (Replaces: 67006415) |
|
$ 8.38 | |||||
| 35 | WP67003795 | Bar, Temperature Control (Replaces: 67003795) |
|
$ 8.45 | |||||
| 36 | W11498983 | Knob, Temperature Control (Replaces: 67003791) |
|
$ 30.64 | |||||
| 37 | WP67003531 | Drawer, Pantry (Replaces: 67003531) |
|
$ 185.41 | |||||
| 38 | W10827015 | Lid, Pantry Drawer (Replaces: 67005900) |
|
Immediately | $ 197.21 | ||||
| 39 | WP67002759 | Divider, Pantry (Replaces: 67002759) |
|
Immediately | $ 61.25 |
