View Diagram in Separate Window
Print Part List

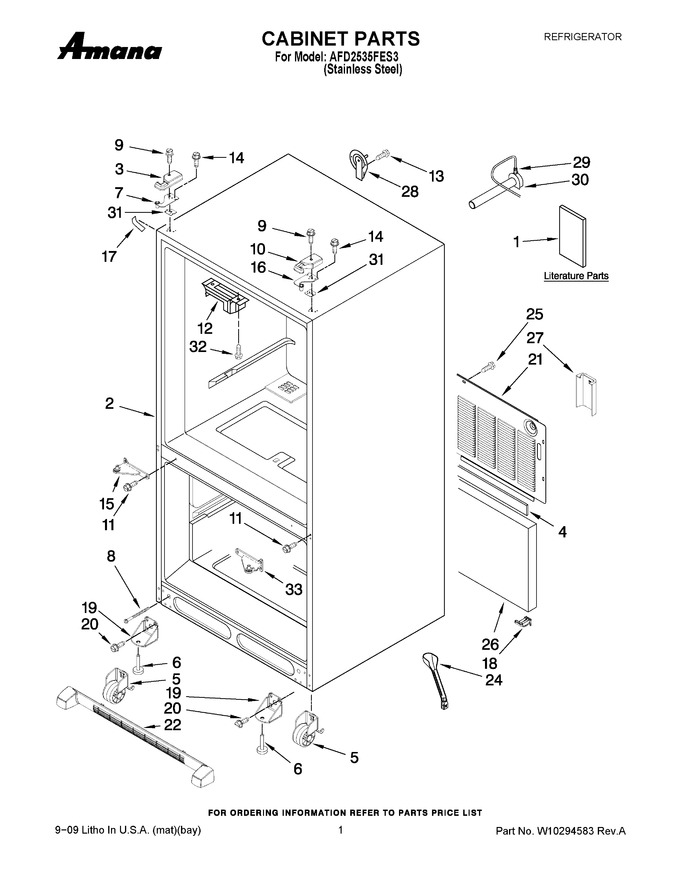

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10175445 | Use & Care Guide |
|
- | |||||
| 1 | W10238844 | Tech Sheet |
|
- | |||||
| 1 | W10183263 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | 12684201B | Cover, Left Hinge (black) |
|
- | |||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 12580304 | Roller Assy. (2) |
|
$ 5.84 | |||||
| 6 | 10354002 | Foot, Brake |
|
Immediately | $ 7.38 | ||||
| 7 | WP12566607ED | Hinge, Left Top (Replaces: 12566605ED) |
|
$ 86.75 | |||||
| 8 | 71003131 | Bolt, Adjusting (front Roller) (Replaces: 12606103) |
|
Immediately | $ 7.08 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | 12684202B | Cover, Right Hinge (black) |
|
- | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 12 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.82 | ||||
| 13 | 12992301 | Screw |
|
$ 7.32 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W10918164 | Hinge, Center (lt) Black) (Replaces: 13000007ED) |
|
$ 86.64 | |||||
| 16 | WP12566606ED | Hinge, Right Top (Replaces: 12566604ED) |
|
Immediately | $ 44.89 | ||||
| 17 | 67003485 | Cover, Corner (black ) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | 12831101 | Sweep, Dual Tube |
|
$ 13.03 | |||||
| 19 | 12906303WD | Bracket, Foot (2) |
|
$ 88.58 | |||||
| 20 | 67006564 | Screw (4) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 198.09 | |||||
| 22 | WPW10534153 | Grille, Toe (black) (Replaces: W10244561) |
|
$ 147.21 | |||||
| 24 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12820505 | Fiber, Acoustic |
|
$ 71.70 | |||||
| 27 | W10208593 | Guard, Water Valve |
|
$ 14.96 | |||||
| 28 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 29 | WPM0114003 | Clip (Replaces: M0114003SP) |
|
$ 11.05 | |||||
| 30 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 114.15 | ||||
| 31 | 12579702 | Shim, Top Hinge |
|
- | |||||
| 32 | WP7101P126-60 | Screw, Block (Replaces: 12990303) |
|
Immediately | $ 7.61 | ||||
| 33 | W10918164 | Hinge, Center (rt) Black (Replaces: 13000008ED) |
|
$ 86.64 |
