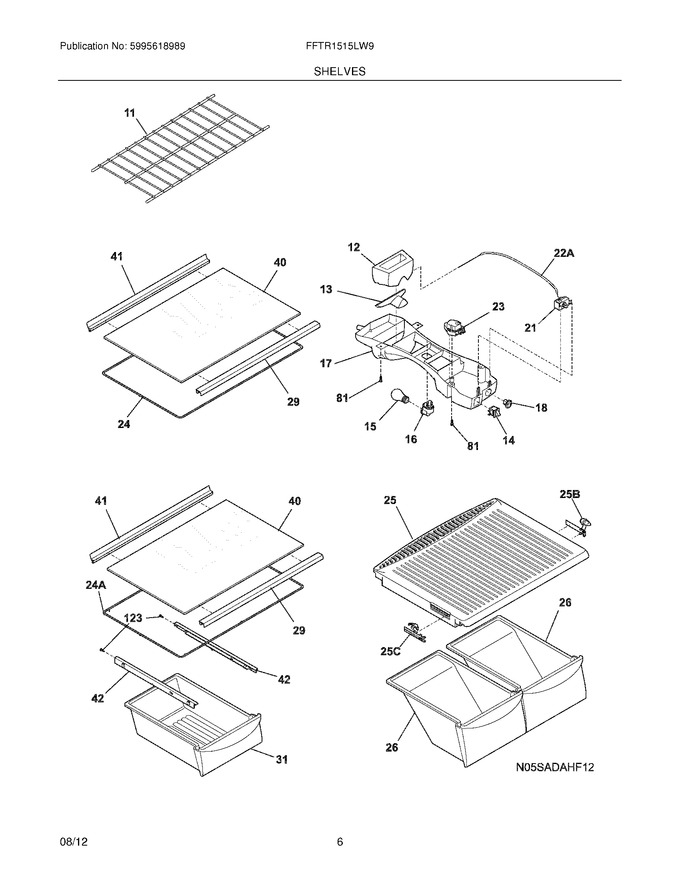

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 240358004 | Shelf,freezer |
|
Immediately | $ 53.25 | ||||
| 12 | 241542001 | Diffuser,air ,top |
|
Immediately | $ 82.69 | ||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 46.46 | ||||
| 17 | 240368002 | Control Box (Replaces: 240368003) |
|
$ 149.14 | |||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240372404 | Frame,sliding Shelf ,full Width (Replaces: 240372401) |
|
Immediately | $ 114.60 | ||||
| 25 | 242120508 | Cover-crisper Pan |
|
$ 171.99 | |||||
| 26 | 240364503 | Pan-crisper,(2) |
|
Immediately | $ 162.81 | ||||
| 29 | 240357703 | Trim-shelf,front |
|
Immediately | $ 70.88 | ||||
| 31 | 240530811 | Pan-meat,w/o Graphics ,clear |
|
Immediately | $ 150.86 | ||||
| 40 | 240350619 | Panel,glass Shelf ,full Width |
|
$ 174.74 | |||||
| 41 | 240561501 | Trim-shelf,22.16`` ,rear |
|
Immediately | $ 49.61 | ||||
| 42 | 240530601 | Track,meat Pan Hanger ,lh |
|
Immediately | $ 73.31 | ||||
| 42 | 240530701 | Track,meat Pan Hanger ,rh |
|
Immediately | $ 73.31 | ||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 15.75 | |||||
| 123 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 7/16 |
|
$ 16.54 | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white (Replaces: 240468201) |
|
$ 10.11 | |||||
| 24A | 240372404 | Frame,sliding Shelf ,full Width ,w/hanger Tabs |
|
Immediately | $ 114.60 | ||||
| 25B | 241613501 | Control-humidity,rh |
|
Immediately | $ 13.39 | ||||
| 25C | 241613502 | Control-humidity,lh |
|
$ 53.09 | |||||
| F14 | 241554901 | Switch-light/lamp |
|
$ 78.75 | |||||
| F15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 22.75 | ||||
| F16 | 241559801 | Socket-light |
|
$ 80.75 | |||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 80.34 | ||||
| F23 | 215846604 | Timer-defrost (Replaces: 241809402) |
|
Immediately | $ 27.31 | ||||
| FNI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 88.99 | ||||
| NI | 241739206 | Energy Guide |
|
- | |||||
| NI | 240568606 | Seal (Replaces: 240568607) |
|
$ 14.18 | |||||
| NI | 5304455649 | Screw,pan Hd ,6-20 X 0.438 |
|
$ 18.90 | |||||
| NI | 5304535377 | Tape,aluminum ,3`` Wide (Replaces: 240570304) |
|
$ 34.84 |
