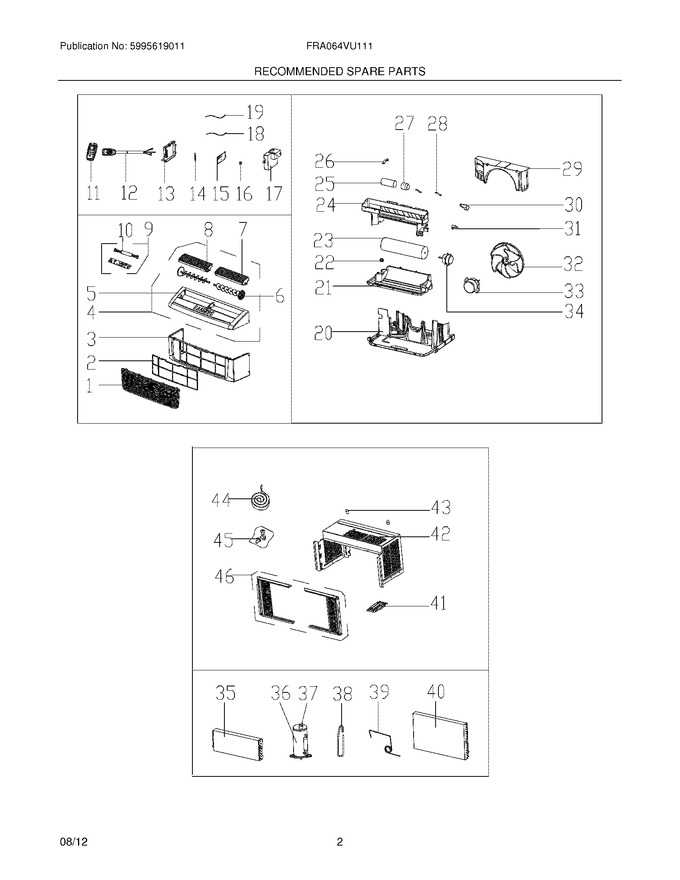

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304483013 | Panel,front Grille |
|
- | |||||
| 2 | 5304483014 | Filter,air ,plastic Frame |
|
- | |||||
| 3 | 5304483015 | Frame,front ,bottom |
|
- | |||||
| 5 | 5304483017 | · Panel,frame ,front |
|
- | |||||
| 13 | 5304485997 | Cover,control Box |
|
- | |||||
| 17 | 5304485998 | Box,control |
|
- | |||||
| 20 | 5304476534 | Base,unit Chassis |
|
- | |||||
| 21 | 5304476535 | Scroll,blower Housing ,bottom |
|
- | |||||
| 22 | 5304476536 | Holder,bearing |
|
- | |||||
| 24 | 5304476537 | Scroll,blower Housing ,top |
|
- | |||||
| 26 | 5304476538 | Strap,capacitor Clamp |
|
- | |||||
| 27 | 5304476539 | Cap,capacitor ,compressor |
|
- | |||||
| 28 | 5304476540 | Bracket,motor Mount ,scroll Top |
|
- | |||||
| 29 | 5304476541 | Shroud,condenser/fan |
|
- | |||||
| 30 | 5304476542 | Cap,capacitor ,fan Motor |
|
- | |||||
| 41 | 5304476583 | Platform,unit Support ,bracket |
|
- | |||||
| 42 | 5304486001 | Cabinet,wrapper/sleeve |
|
- | |||||
| 43 | 5304476584 | Guide,filler Panel ,right/left |
|
- | |||||
| 44 | 5304472211 | Seal Kit,foam ,sash Filler |
|
$ 36.12 | |||||
| 45 | 5304476516 | Hardware,mounting ,screws/locks |
|
- | |||||
| 46 | 5304476517 | Window Filler Kit,slider Panels ,accordion |
|
- | |||||
| F10 | 5304485996 | · Wire,connector ,pc Boards |
|
- | |||||
| F11 | 5304476802 | Remote Control,transmitter |
|
$ 115.67 | |||||
| F12 | 5304476515 | Power Cord,electric ,lcdi |
|
- | |||||
| F14 | 5304476531 | Terminal,ground Wire ,link |
|
- | |||||
| F15 | 5304476532 | Pc Board,control ,main |
|
- | |||||
| F16 | 5304470989 | Transformer |
|
$ 94.98 | |||||
| F18 | 5304504724 | Sensor,ambient Temp ,thermistor (Replaces: 5304487548) |
|
$ 19.85 | |||||
| F19 | 5304521225 | Sensor,evap Temp ,thermistor (Replaces: 5304471275) |
|
- | |||||
| F23 | 5304476077 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F25 | 5304476049 | Capacitor,compressor |
|
- | |||||
| F31 | 5304483021 | Capacitor,fan ,motor |
|
- | |||||
| F32 | 5304476078 | Fan Blade,axial |
|
- | |||||
| F33 | 5304487546 | Motor,fan ,exhaust |
|
- | |||||
| F34 | 5304476075 | Motor,blower |
|
- | |||||
| F35 | 5304487547 | Evaporator,with ,capillary Tube |
|
- | |||||
| F36 | 5304487549 | Compressor,with Overload |
|
- | |||||
| F37 | 5304486057 | Overload Protector,compressor |
|
- | |||||
| F38 | 5304487550 | Tube,discharge |
|
- | |||||
| F39 | 5304487551 | Tube,capillary |
|
- | |||||
| F4 | 5304483016 | Frame Assembly,front Assembly ,top |
|
- | |||||
| F40 | 5304487552 | Condenser,with Cap Tube |
|
- | |||||
| F6 | 5304483018 | Louver,vertical ,(4) |
|
- | |||||
| F7 | 5304483019 | Louver,horizontal ,(4) |
|
- | |||||
| F8 | 5304483020 | Louver,horizontal ,left ,(4) |
|
- | |||||
| F9 | 5304477181 | Pc Board,display/input |
|
- |
