SELECT A DIAGRAM

01 - Cover


03 - Doors


05 - Cabinet


07 - Shelves

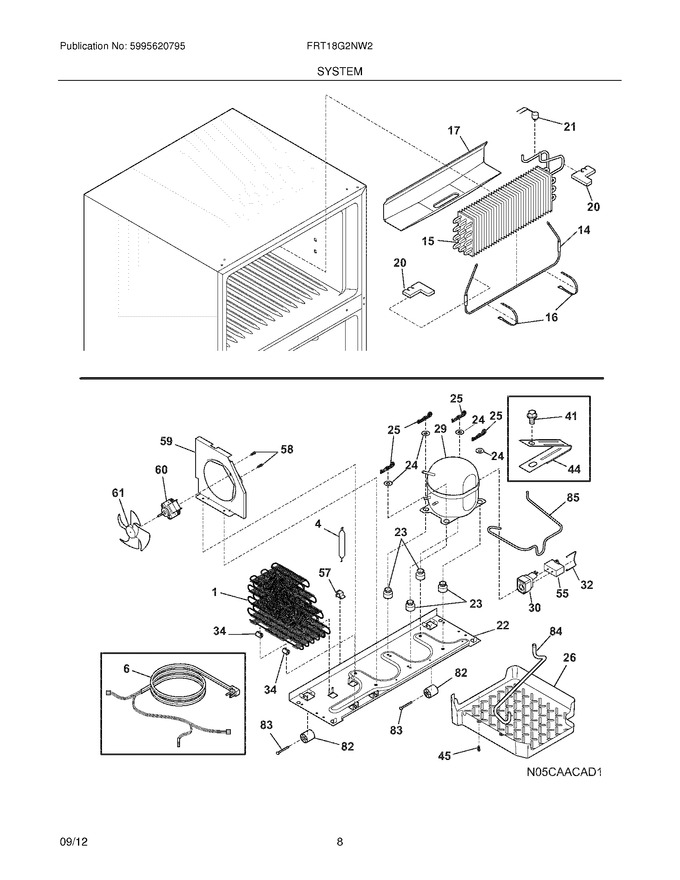

09 - System


10 - Wiring Schematic


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 66.47
17	241801301		Trough-drain				$ 71.62
20	241551902		Insulation Block				$ 12.60
22	241665606		Base-compressor				$ 215.71
23	218513300		Grommet-compr Mtg,(4)				$ 47.25
24	241812301		Washer-compr Mtg				$ 14.32
25	242037701		Clip-compressor Mtg				$ 3.15
26	241920605		Pan-defrost   (Replaces: 241683601)				$ 59.73
32	241715901		Strap-cover				$ 12.60
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 22.05
41	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 16.85
44	5304456288		Clamp-wiring Harness,strain Relief ,galv Steel		Appelez-nous	-
45	241500305		Screw,hex Washer Head ,8-18ab X 0.625   (Replaces: 241500304)				$ 3.37
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240555002		Screw,hex Washer Head ,8-32 X 0.375   (Replaces: 218897004)			Immediately	$ 14.96
59	5303918774		Shroud,cond Fan Motor   (Replaces: 241935602)			Immediately	$ 207.00
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 57.30
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 39.27
84	240500801		Tube-drain,rubber ,lower				$ 72.45
85	241844602		Tube-connector,suction				$ 62.37
F1	241785404		Condenser,dynamic				$ 188.21
F14	242044008		Heater-defrost   (Replaces: 242044020)			Immediately	$ 36.67
F15	242067220		Evaporator		Appelez-nous	-
F21	5303918634		Thermostat Kit,defrost ,w/connector			Immediately	$ 44.79
F29	241926702		Compressor,samsung		Appelez-nous	-
F30	241707715		Starter-ptc				$ 74.81
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944002)			Immediately	$ 35.19
F55	297286812		Capacitor-run,run ,12 Mf   (Replaces: 216985002)			Immediately	$ 13.09
F6	5304521786		Harness-wiring,machine Compt   (Replaces: 242019701)				$ 140.72
F60	242018404		Motor-condenser Fan				$ 204.23
F61	240524102		Fan Blade,condenser Fan			Immediately	$ 43.81
FNI	240388701		Wiring Harness,control Box			Immediately	$ 88.99
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 21.26
NI	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
NI	240346701		Tape-foam Seal,shroud				$ 33.08
NI	240359403		Screw-fan Shroud,(2)				$ 4.21

    View Diagram in Separate Window       Print Part List
