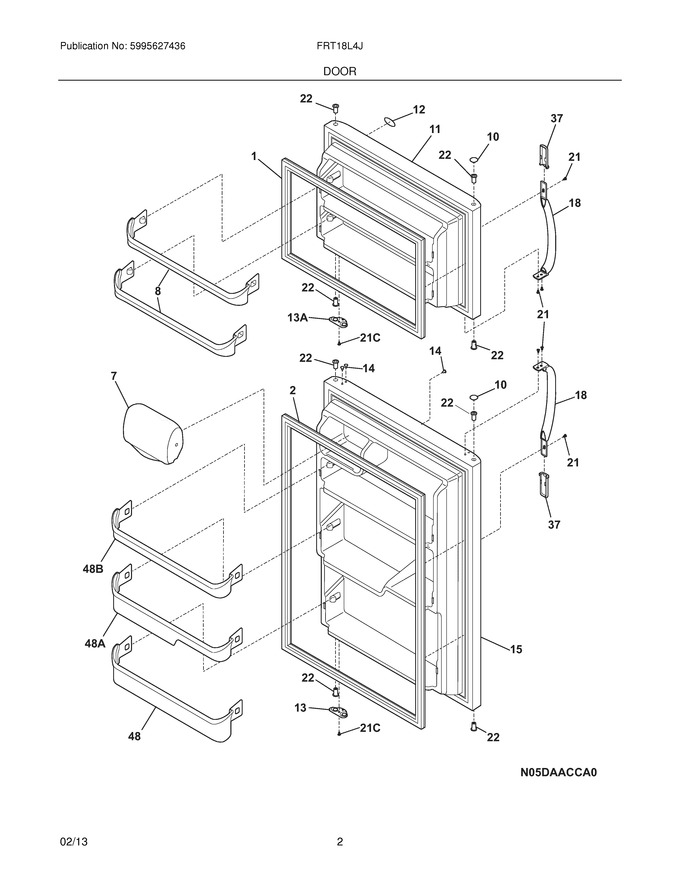

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 40.45 | ||||
| 8 | 240534801 | Rack-door |
|
Immediately | $ 55.13 | ||||
| 10 | 240381303 | Plug-button,black ,hinge Brg Hole |
|
$ 77.52 | |||||
| 11 | 240410203 | Door-frzr,black ,complete Assy |
|
$ 521.25 | |||||
| 12 | 242016301 | Nameplate |
|
$ 4.73 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 16.85 | |||||
| 14 | 240494003 | Plug-button,black |
|
$ 20.22 | |||||
| 15 | 240450413 | Door-refr,black ,complete Assy (Replaces: 240410305) |
|
$ 570.57 | |||||
| 18 | 218668003 | Handle-door, Black |
|
$ 77.18 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 8.43 | ||||
| 37 | 215870636 | Trim-handle,2.47`` ,black ,w/satin Al Band |
|
$ 76.91 | |||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 58.19 | ||||
| 13A | 240312415 | Door Stop,black ,frzr |
|
$ 23.63 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 48A | 240337901 | Bin-door,refr |
|
Immediately | $ 57.92 | ||||
| 48B | 240338001 | Bin-door,pseudo ,gallon ,refr |
|
Immediately | $ 38.84 | ||||
| F1 | 241872509 | Gasket-frzr Door,black ,magnetic |
|
Immediately | $ 182.39 | ||||
| F2 | 241872512 | Gasket-refr Door,black ,magnetic |
|
Immediately | $ 183.77 | ||||
| NI | 218676004 | Band-decorative,satin Aluminum ,handle Trim |
|
$ 57.60 | |||||
| NI | 316136900 | Cleaner,stainless Steel |
|
$ 35.49 |
