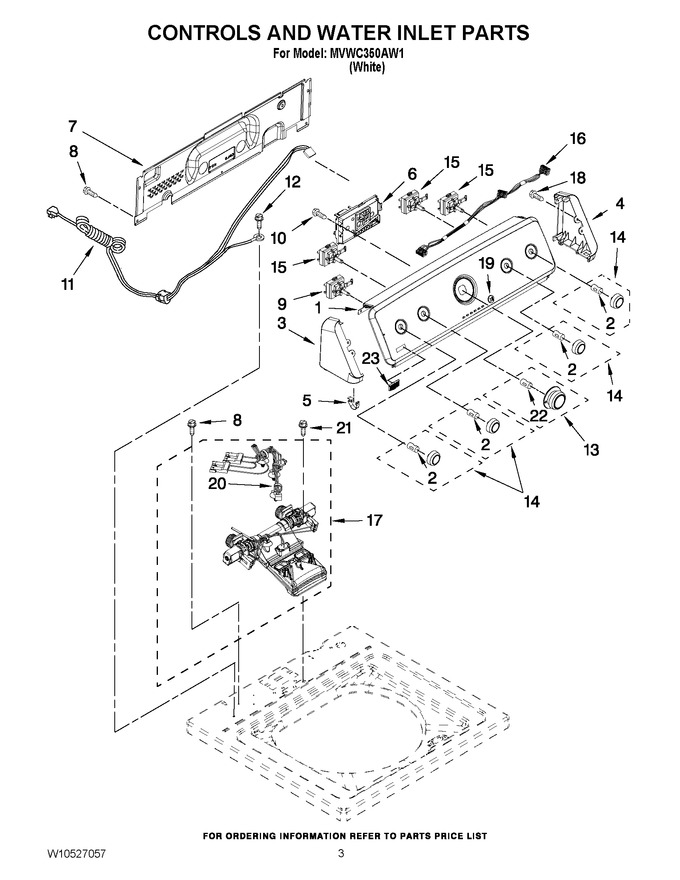

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10468348		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 8.20
3	WPW10193824		Cap, End (l.h.) (includes Item 5)   (Replaces: W10193824)				$ 74.39
4	WPW10193821		Cap, End (r.h.) (includes Item 5)   (Replaces: W10193821)				$ 74.72
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10484689		Control Unit Assembly,				$ 427.94
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 360.43
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 117.42
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	WPW10525194		Cord, Power   (Replaces: W10276649)				$ 163.41
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	WPW10317454		Knob, Timer   (Replaces: W10317454)				$ 63.47
14	WPW10317455		Knob, Control   (Replaces: W10317455)				$ 63.33
15	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 182.10
16	W10291177		Harness, Upper				$ 152.67
17	WPW10683603		Inlet Assembly, Water   (Replaces: W10423125)			Immediately	$ 81.56
18	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
19	WPW10251309		Pushbutton, Start   (Replaces: W10251309)			Immediately	$ 76.00
20	W10876654		Harness, Valve   (Replaces: W10423127)				$ 194.92
21	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
22	WP688805		Clip, Knob   (Replaces: 688805)			Immediately	$ 8.20
23	W10323734		Badge				$ 63.95
