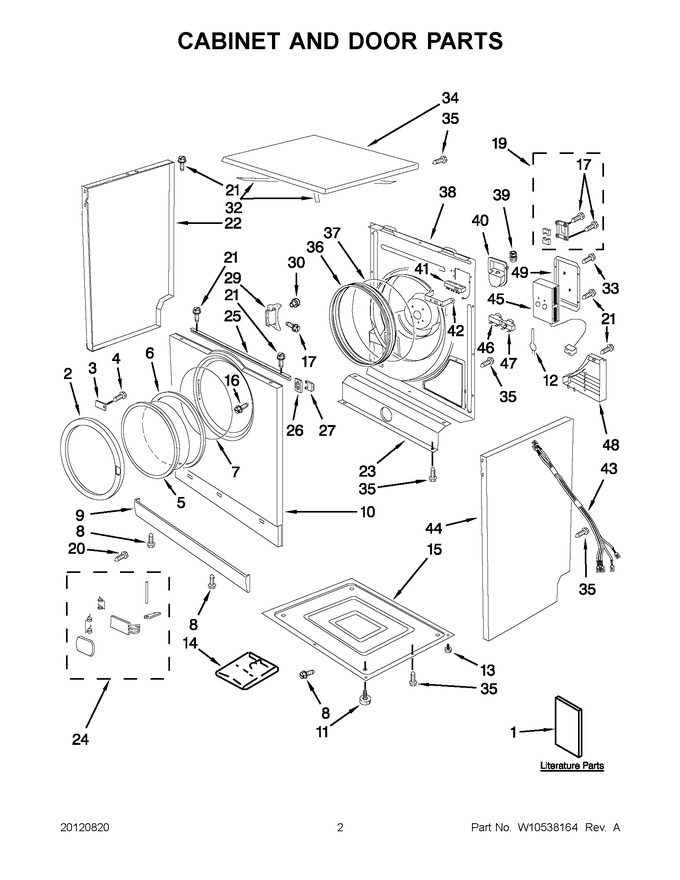

01 - Cabinet And Door Parts
02 - Control Panel Parts
03 - Drum And Motor Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10445419 | Use & Care Guide |
|
- | |||||
| 1 | W10537935 | Wiring Diagram |
|
- | |||||
| 2 | W10537931 | Frame, Outer Door |
|
$ 349.50 | |||||
| 3 | 8183106 | Retainer Insert (glass Door) |
|
$ 27.83 | |||||
| 4 | WPW10253196 | Screw, Retaining Insert (Replaces: 8182333) |
|
$ 4.62 | |||||
| 5 | 8182516 | Glass-door |
|
$ 136.00 | |||||
| 6 | W10483230 | Frame, Inner Door |
|
$ 348.13 | |||||
| 7 | 8182515 | Gasket, Door |
|
$ 105.88 | |||||
| 8 | 8182518 | Screw |
|
$ 86.39 | |||||
| 9 | 8182503 | Toe Panel |
|
$ 136.99 | |||||
| 10 | N/P | Front Panel (part Not A Serviceable Item) |
|
- | |||||
| 11 | WP8182479 | Foot, Adjustable (Replaces: 8182479) |
|
$ 109.45 | |||||
| 12 | 8183097 | Spring, Thermostat |
|
$ 180.94 | |||||
| 13 | WP12990527 | Screw (Replaces: 8182459) |
|
Immediately | $ 8.76 | ||||
| 14 | W10178021 | Kit-stack |
|
- | |||||
| 15 | 8182480 | Base |
|
- | |||||
| 16 | 8182401 | Screw, Door Catch |
|
$ 16.52 | |||||
| 17 | 8183089 | Screw |
|
- | |||||
| 19 | 8182533 | Support, Drum Shaft |
|
$ 150.57 | |||||
| 20 | W10483235 | Screw |
|
- | |||||
| 21 | W11245710 | Screw (Replaces: 8182323) |
|
Immediately | $ 14.75 | ||||
| 22 | 8182509 | Side Panel (left Hand) |
|
$ 415.53 | |||||
| 23 | 8182535 | Panel, Lower Rear |
|
- | |||||
| 24 | W10537934 | Kit, Door Handle |
|
$ 292.77 | |||||
| 25 | 8182511 | Bracket, Front Panel |
|
$ 432.26 | |||||
| 26 | 8182531 | Plate, Door Switch |
|
$ 121.12 | |||||
| 27 | WP8182530 | Door Switch (Replaces: 8182530) |
|
Immediately | $ 162.88 | ||||
| 29 | N/P | Door Hinge (part Not A Serviceable Item) |
|
- | |||||
| 30 | N/P | Rivet, Hinge (part Not A Serviceable Item) |
|
- | |||||
| 32 | 8183109 | Cross-bar, Cabinet |
|
- | |||||
| 33 | 8182526 | Screw, Element Cover |
|
- | |||||
| 34 | 8182524 | Top |
|
$ 460.34 | |||||
| 35 | W11233072 | Screw (Replaces: 8182338) |
|
Immediately | $ 14.72 | ||||
| 36 | WP8182507 | Seal, Rear Drum (Replaces: 8182507) |
|
$ 486.24 | |||||
| 37 | 8182540 | Retaining Ring, Rear Seal |
|
$ 186.96 | |||||
| 38 | 8182590 | Panel-rear |
|
$ 379.92 | |||||
| 39 | 8182506 | Nut, Power Cord |
|
$ 224.04 | |||||
| 40 | 8182514 | Cover, Terminal Block |
|
$ 210.62 | |||||
| 41 | 8182525 | Terminal Block |
|
- | |||||
| 42 | 8182513 | Mounting Bracket, Terminal Block |
|
- | |||||
| 43 | 8183114 | Harness, Wiring |
|
$ 499.30 | |||||
| 44 | WP8182520 | Side Panel (right Hand) (Replaces: 8182520) |
|
$ 512.68 | |||||
| 45 | WP8182528 | Heater Element (Replaces: 8182528) |
|
Immediately | $ 238.21 | ||||
| 46 | W10843940 | Thermostat, 194f (98c) (Replaces: 8182508) |
|
Immediately | $ 211.57 | ||||
| 47 | WPW10483239 | Thermostat (tco) (150f) (Replaces: W10483239) |
|
Immediately | $ 160.56 | ||||
| 48 | 8182510 | Cover, Inlet |
|
$ 253.66 | |||||
| 49 | 8183110 | Cover, Element |
|
- |
