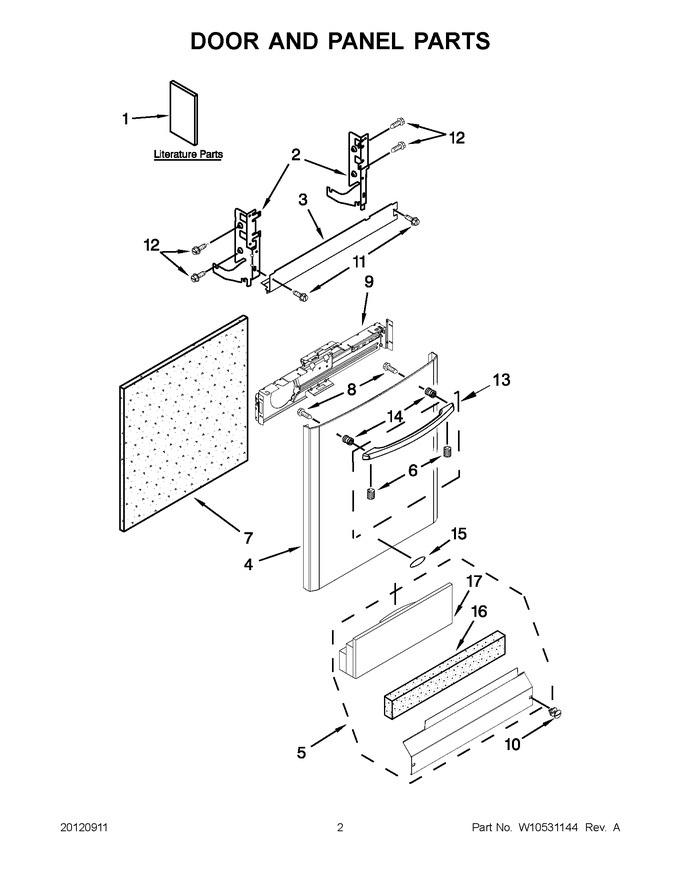

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10321878		Tech Sheet (english)		Appelez-nous	-
1	W10321879		Tech Sheet (french)		Appelez-nous	-
1	W10401504		Instructions, Installation		Appelez-nous	-
1	W10490737		Energy Guide		Appelez-nous	-
1	W10438314		Use & Care Guide Tech Sheet		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 128.15
2	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 128.02
3	W10850371		Barrier, Vapor Assembly   (Replaces: W10321449)			Immediately	$ 29.59
4	W10422054		Panel Front (includes Items 8, 14, & 15) (stainless)				$ 181.58
5	WPW10526114		Access Panel (black)   (Replaces: W10368715)			Immediately	$ 163.77
6	WP8534008		Screw, Set   (Replaces: 8534008)				$ 8.43
7	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 86.61
8	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 6.80
9	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 79.49
10	WPW10503548		Fastener (black)   (Replaces: W10331789)			Immediately	$ 27.35
11	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
12	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
13	W10461637		Handle, Assembly (stainless)		Appelez-nous	-
14	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 7.98
15	W10288004		Nameplate				$ 46.90
16	W10831329		Insulation, Toe Panel   (Replaces: W10385107)			Immediately	$ 38.97
17	W10831329		Insulation, Three Layer   (Replaces: W10350437)			Immediately	$ 38.97
