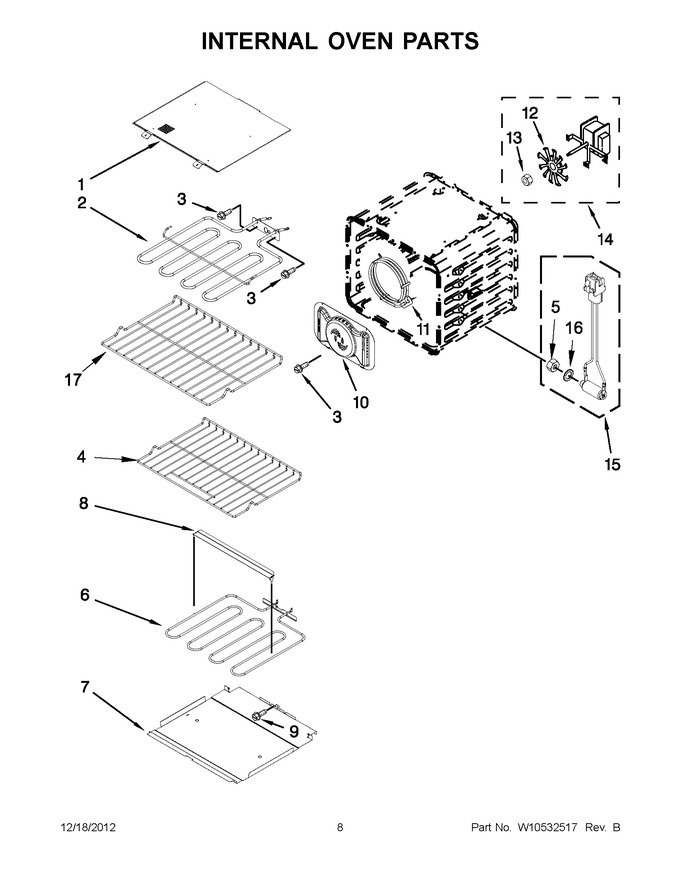

01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11290999 | Element, Broil Shield (Replaces: W10318164) |
|
$ 210.95 | |||||
| 2 | W10804429 | Element, Broil (Replaces: W10317383) |
|
Immediately | $ 152.91 | ||||
| 3 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 4 | WPW10554529 | Rack, Oven (Replaces: W10526029) |
|
$ 173.24 | |||||
| 5 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 7.30 | |||||
| 6 | W11545804 | Element, Bake (Replaces: W10282948) |
|
Immediately | $ 102.53 | ||||
| 7 | W10318198 | Tray, Hidden Bake |
|
$ 195.83 | |||||
| 8 | W10282957 | Tray, Hidden Bake Crossbar |
|
$ 47.47 | |||||
| 9 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 10 | W11234761 | Baffle, Bow Tie (Replaces: W10359277) |
|
$ 237.00 | |||||
| 11 | W11678579 | Element, Convection (Replaces: W10317384) |
|
Immediately | $ 121.00 | ||||
| 12 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 13 | WPW10116349 | Nut, Acorn (Replaces: W10116349) |
|
$ 21.78 | |||||
| 14 | W10794022 | Motor, Convection Fan (Replaces: W10116228) |
|
Immediately | $ 214.63 | ||||
| 15 | WPW10524044 | Jack, Meat Probe (Replaces: W10524044) |
|
$ 209.28 | |||||
| 16 | WP9755547 | Washer, Lock (Replaces: 9755547) |
|
$ 6.41 | |||||
| 17 | W10282972 | Rack, Sliding |
|
- |
