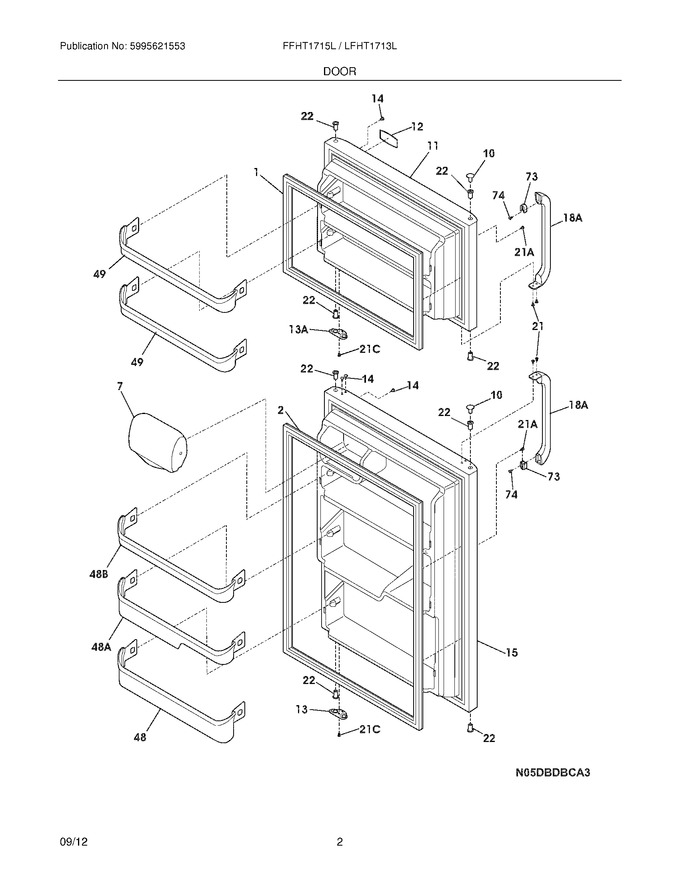

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240337712		Door-dairy			Immediately	$ 40.45
10	240381303		Plug-button,black ,hinge Brg Hole				$ 77.52
11	240420104		Door-frzr,black ,complete Assy		Appelez-nous	-
12	242062803		Nameplate,black		Appelez-nous	-
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 16.85
14	240494003		Plug-button,black				$ 20.22
15	240420204		Door-refr,black ,complete Assy				$ 280.86
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 8.43
48	240535101		Rack-door			Immediately	$ 31.74
49	240535001		Rack-door			Immediately	$ 53.55
73	218396701		Block-handle Mtg,dovetail		Appelez-nous	-
74	215503203		Screw,cr Pan Hd ,10-16 X 0.500			Immediately	$ 7.88
13A	240312415		Door Stop,black ,frzr				$ 23.63
18A	218428121		Handle-door,gray ,w/block & Screw				$ 63.79
21A	240521303		Screw,no.10-16 X 1/2			Immediately	$ 33.55
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
48A	240383801		Bin-door,gallon			Immediately	$ 62.11
48B	240383901		Bin-door,2-liter			Immediately	$ 63.19
F1	242193207		Gasket-frzr Door,black ,magnetic			Immediately	$ 204.91
F2	242193210		Gasket-refr Door,white ,magnetic			Immediately	$ 186.57
