SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts

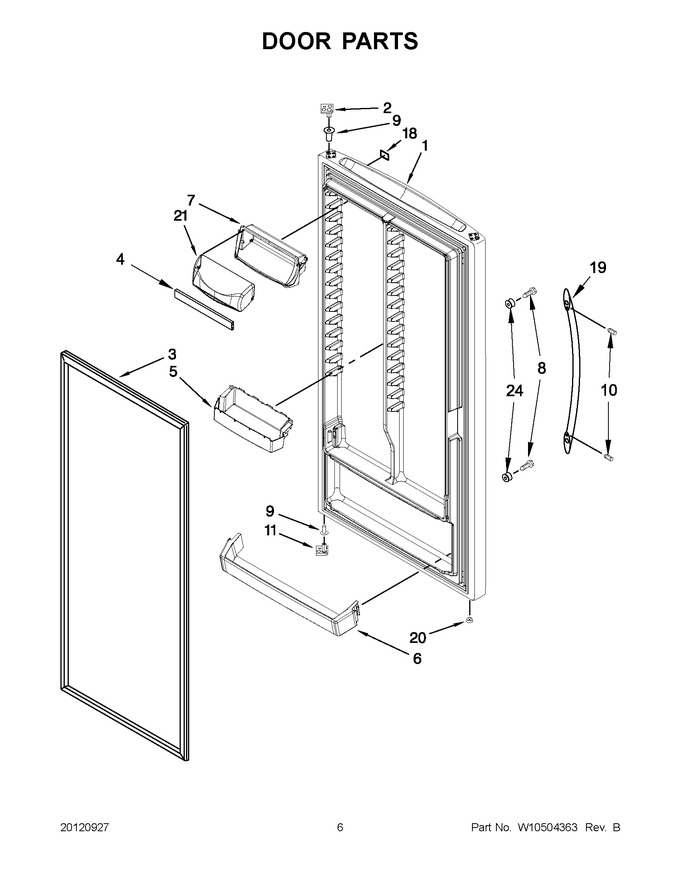

03 - Door Parts


04 - Unit Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10296809		Exterior Door (includes Gasket) (white)   (Replaces: 4-82827-058)				$ 783.33
1	4-82827-059		Exterior Door (includes Gasket) (stainless Steel)		Appelez-nous	-
2	2-81124-004		Stop, Door (top) (silver)				$ 53.64
2	2-81125-001		Stop, Door (top) (natural)		Appelez-nous	-
3	WP4-65151-002		Gasket (white)   (Replaces: 4-65151-002)				$ 377.13
3	4-65151-010		Gasket (silver)				$ 196.81
4	3-34715-004		Rail, Door Shelf				$ 116.03
5	4-65454-001		Bin, Door				$ 36.79
6	4-65449-001		Rail, Door (lower)				$ 95.53
7	4-65430-001		Housing, Dairy Compartment				$ 65.00
8	W11772394		Screw   (Replaces: 3-24004-091)			Immediately	$ 13.22
9	3-60199-004		Bushing, Hinge (silver)				$ 11.91
9	3-60199-001		Bushing, Hinge (white)		Appelez-nous	-
10	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
11	2-81124-001		Stop, Door (bottom) (natural)				$ 31.15
18	WPW10170766		Nameplate (stainless)   (Replaces: W10170766)			Immediately	$ 70.50
19	3-82596-003		Handle (brushed Aluminum)				$ 314.03
19	3-82596-002		Handle (white)				$ 265.43
20	3-24898-007		Plug, Vent				$ 11.34
21	4-65429-001		Door, Compartment				$ 29.60
24	WPW10170540		Stud, Handle   (Replaces: 2-82532-001)			Immediately	$ 8.51

    View Diagram in Separate Window       Print Part List
