01 - Cabinet Parts

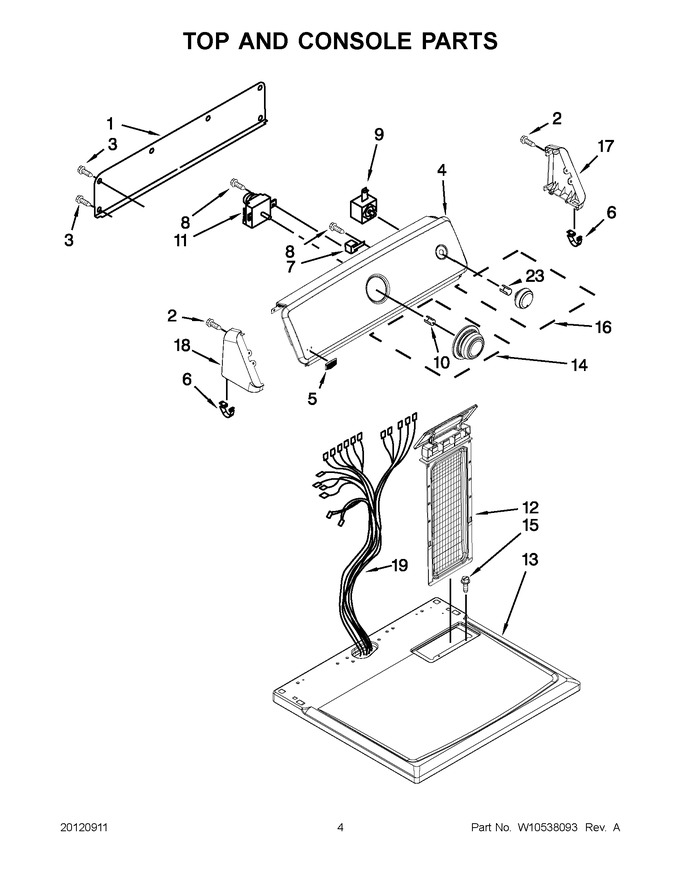

02 - Top And Console Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console |
|
$ 135.31 | |||||
| 2 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W10115474 | Console Panel & Bracket Assembly |
|
$ 229.16 | |||||
| 5 | W10323734 | Badge, Assembly |
|
$ 63.95 | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 8 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 9 | WP3404233 | Switch, Push-to-start (Replaces: 3404233) |
|
Immediately | $ 115.10 | ||||
| 10 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 11 | WP8299779 | Timer, 60 Hz. (Replaces: 8299779) |
|
Immediately | $ 353.22 | ||||
| 12 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 54.63 | ||||
| 13 | WPW10225059 | Top (white) (Replaces: W10225059) |
|
$ 250.69 | |||||
| 14 | WPW10317454 | Knob Assembly (grey) (Replaces: W10317454) |
|
$ 63.47 | |||||
| 15 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 16 | WPW10317455 | Knob, Control (grey) (Replaces: W10317455) |
|
$ 63.33 | |||||
| 17 | WPW10193821 | End Cap (r.h.) (white) (Replaces: W10193821) |
|
$ 74.72 | |||||
| 18 | WPW10193824 | End Cap (l.h.) (white) (Replaces: W10193824) |
|
$ 74.39 | |||||
| 19 | W10346389 | Harness, Wiring |
|
- | |||||
| 20 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 |
