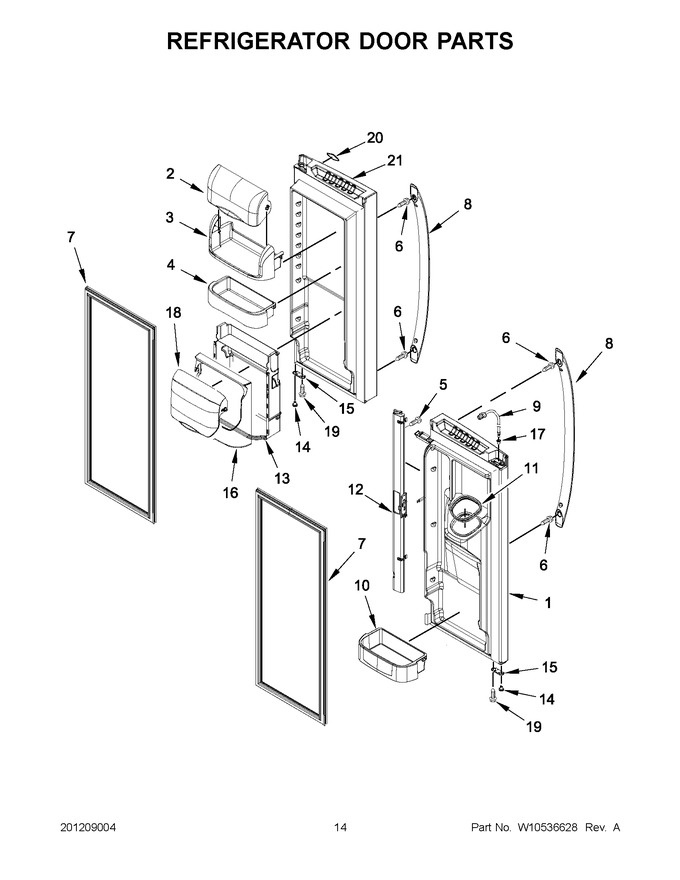

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107882S | Door, Left (stainless) |
|
- | |||||
| 2 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 3 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 4 | WP67006313 | Bucket, Shelf (Replaces: 12945801SP) |
|
Immediately | $ 84.62 | ||||
| 5 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 6 | WPW10661886 | Screw (Replaces: W10303465) |
|
Immediately | $ 12.88 | ||||
| 7 | W10830055 | Gasket, Door Right Hand (grey) (Replaces: W10443238) |
|
Immediately | $ 229.10 | ||||
| 7 | W10830048 | Gasket, Door Left Hand (grey) (Replaces: W10443240) |
|
Immediately | $ 251.89 | ||||
| 8 | W10291144 | Door Handle (stainless) |
|
$ 105.40 | |||||
| 9 | W10275942 | Tube, Water |
|
Immediately | $ 120.27 | ||||
| 10 | 12840005 | Bucket, Gallon |
|
- | |||||
| 11 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 12 | WP12722813AP | Mullion, Door (grey) (Replaces: 12722813AP) |
|
$ 340.89 | |||||
| 13 | W11266639 | Frame, Chiller (rear) (Replaces: 12945601SP) |
|
$ 269.63 | |||||
| 14 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 15 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 16 | W11266639 | Frame, Chiller (front) (Replaces: 12945501SP) |
|
$ 269.63 | |||||
| 17 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 18 | WP67006312 | Door, Chiller (Replaces: 12945701SP) |
|
Immediately | $ 86.29 | ||||
| 19 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 20 | WPW10170766 | Nameplate (stainless) (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 21 | 13107853SQ | Door, Right (stainless) (Replaces: 13107853S) |
|
$ 1,102.89 |
