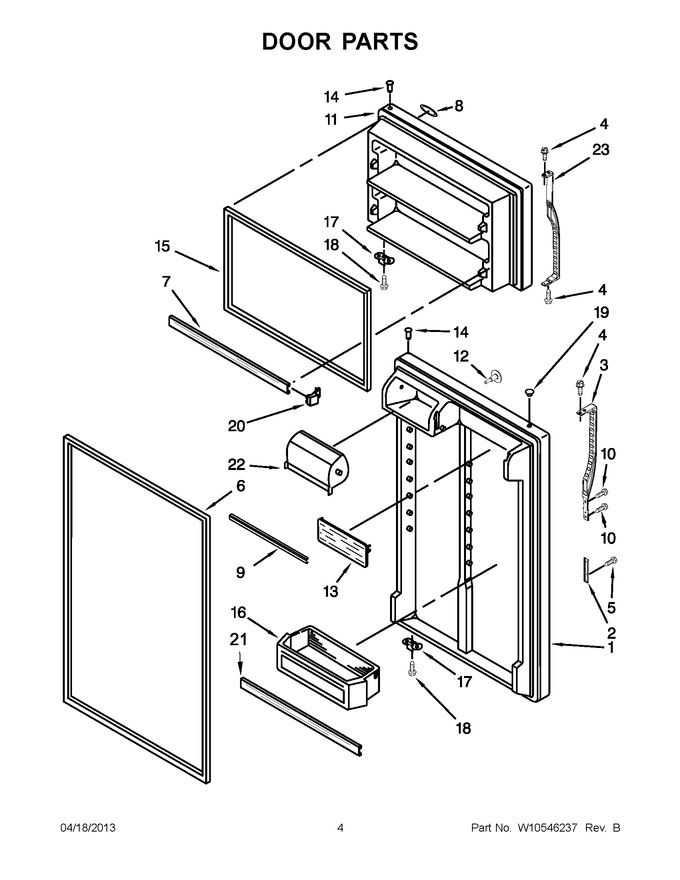

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11023688 | Refrigerator Door (includes Items 6 & 14) (biscuit/bisque) (Replaces: 2205284) |
|
- | |||||
| 1 | W11023679 | Refrigerator Door (includes Items 6 & 14) (white) (Replaces: 2183920) |
|
$ 682.52 | |||||
| 1 | W11023687 | Refrigerator Door (includes Items 6 & 14) (black) (Replaces: 2200714) |
|
$ 724.90 | |||||
| 1 | W10853404 | Refrigerator Door (includes Items 6 & 14) (stainless Steel) (Replaces: W10371936) |
|
- | |||||
| 2 | 2193143B | Handle, Trim (black) |
|
- | |||||
| 2 | 2193143W | Handle, Trim (white) |
|
$ 21.66 | |||||
| 2 | 2193143T | Handle, Trim (biscuit/bisque) |
|
- | |||||
| 3 | 2254533B | Handle, Refrigerator (black) |
|
$ 68.18 | |||||
| 3 | 2254533T | Handle, Refrigerator (biscuit/bisque) |
|
$ 70.12 | |||||
| 3 | WP2254533W | Handle, Refrigerator (white) (Replaces: 2254533W) |
|
$ 162.50 | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 5 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 7.36 | |||||
| 6 | 2159061 | Door Gasket, Magnetic (beige) (Replaces: 2202875) |
|
Immediately | $ 165.30 | ||||
| 6 | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 297.86 | |||||
| 7 | W10463315 | Trim-door |
|
- | |||||
| 8 | WPW10170766 | Nameplate (silver) (Replaces: W10170766) |
|
Immediately | $ 63.45 | ||||
| 9 | WP2201061 | Trim-door (Replaces: W10421476) |
|
$ 111.89 | |||||
| 10 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 11 | W11023679 | Freezer Door (includes Items 14 & 15) (white) (Replaces: 2182489) |
|
$ 682.52 | |||||
| 11 | W11023688 | Freezer Door (includes Items 14 & 15) (biscuit/bisque) (Replaces: 2204686) |
|
- | |||||
| 11 | W10853404 | Freezer Door (includes Items 14 & 15) (stainless Steel) (Replaces: W10371935) |
|
- | |||||
| 11 | W11023687 | Freezer Door (includes Items 14 & 15) (black) (Replaces: 2200711) |
|
$ 724.90 | |||||
| 12 | WP2200936 | Hole Plug (biscuit/bisque) (Replaces: 2200936) |
|
$ 7.17 | |||||
| 12 | WP2189009 | Hole Plug, (black) (Replaces: 2189009) |
|
$ 6.85 | |||||
| 12 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 6.99 | ||||
| 13 | WP2188236 | Door, Flip (Replaces: 2188236) |
|
$ 57.94 | |||||
| 14 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 15 | 2177310 | Door Gasket, Magnetic (black) (Replaces: 2214969) |
|
$ 301.78 | |||||
| 15 | 2159060 | Door Gasket, Magnetic (beige) (Replaces: 2214967) |
|
$ 302.41 | |||||
| 16 | WP2204812 | Bin, Door (Replaces: 2204812) |
|
$ 72.41 | |||||
| 17 | W11745278 | Bracket, Door Stop (silver) (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 18 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 19 | WP2212649 | Hole Plug, Hinge (biscuit/bisque) (Replaces: 2212649) |
|
$ 7.19 | |||||
| 19 | WP2212651 | Hole Plug, Hinge (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 19 | WP2212648 | Hole Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 21 | WPW10421486 | Trim-door (Replaces: W10421486) |
|
$ 103.27 | |||||
| 22 | W11617783 | Compartment Door (Replaces: W10385897) |
|
$ 68.65 | |||||
| 23 | WPW10291249 | Handle, Freezer (white) (Replaces: W10291249) |
|
$ 139.54 | |||||
| 23 | WPW10292303 | Handle, Freezer (black) (Replaces: W10292303) |
|
$ 129.77 | |||||
| 23 | WPW10292304 | Handle, Freezer (biscuit/bisque) (Replaces: W10292304) |
|
$ 139.46 |
