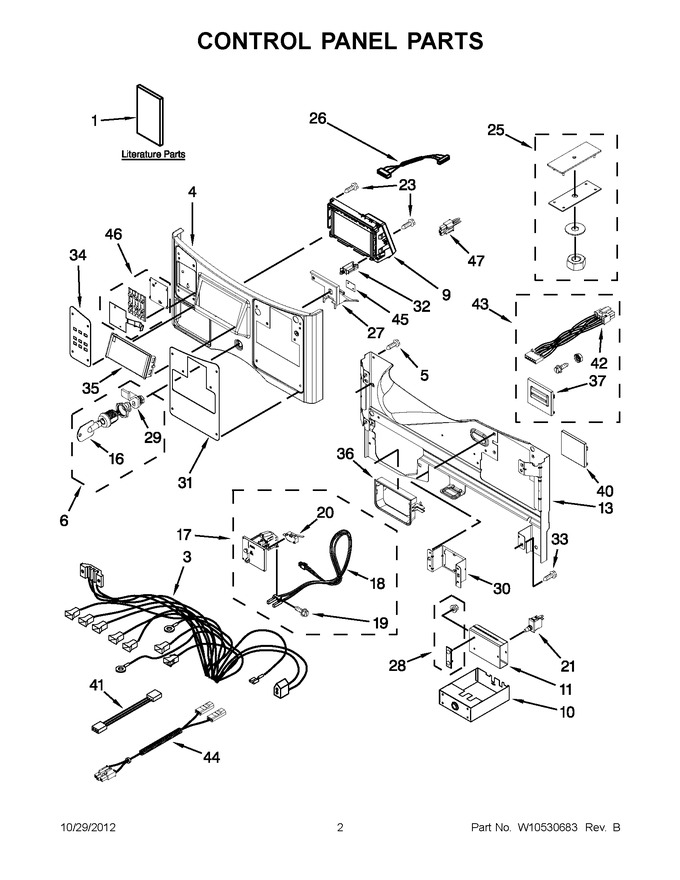

| 1 | W10335466 | Instructions, Installation |
|
- | |||||
| 1 | W10335470 | Instructions, Installation Card Reader |
|
- | |||||
| 1 | W10404629 | Sheet, Tech |
|
- | |||||
| 3 | W10423411 | Harness, Main Electric Models |
|
- | |||||
| 3 | WPW10423412 | Harness, Main Gas Model (Replaces: W10423412) |
|
$ 261.92 | |||||
| 4 | W10198204 | Assembly, Panel Pr - Card Reader |
|
- | |||||
| 4 | W10198203 | Assembly, Panel Pd - Coin Drop |
|
- | |||||
| 5 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 6 | W11231586 | Lock, Service & Programming (Replaces: W10198223) |
|
- | |||||
| 9 | W10827410 | Assembly, Techbox Pd - Coin Drop (Replaces: W10198219) |
|
Immediately | $ 953.99 | ||||
| 9 | W10827636 | Assembly, Techbox Pr - Card Reader (Replaces: W10198220) |
|
$ 270.26 | |||||
| 10 | W11204019 | Box, Coin (Replaces: W10133248) |
|
$ 163.85 | |||||
| 11 | W11204020 | Assembly, Vault Body (Replaces: W10133258) |
|
$ 421.72 | |||||
| 13 | W11200173 | Bracket, Console (Replaces: W10198369) |
|
- | |||||
| 16 | WPW10114740 | Key, Access Door (Replaces: W10114740) |
|
$ 137.49 | |||||
| 17 | WPW10133242 | Assembly, Single Coin Drop (Replaces: W10133242) |
|
$ 126.51 | |||||
| 17 | W11643135 | Assembly, Dual Coin Drop (Replaces: W10133245) |
|
$ 597.42 | |||||
| 18 | W10247388 | Coin Optic Sensor Assembly (black) |
|
- | |||||
| 18 | WPW10247389 | Coin Optic Sensor Assembly (white) (Replaces: W10247389) |
|
Immediately | $ 121.70 | ||||
| 19 | WP3395530 | Screw (Replaces: W10142655) |
|
$ 8.57 | |||||
| 20 | W10133281 | Switch, Service Access |
|
- | |||||
| 21 | W11123448 | Switch, Vault & Service Door (Replaces: W10133289) |
|
- | |||||
| 23 | WPW10273971 | Screw (Replaces: W10192860) |
|
Immediately | $ 7.55 | ||||
| 25 | W11416034 | Kit-coin Box, Security (to Be Serviced As A Kit) (Replaces: W10169579) |
|
$ 132.30 | |||||
| 26 | W11700545 | Harness, Wire Dryer Ccu To Uic (Replaces: W10242897) |
|
$ 32.68 | |||||
| 27 | W10198375 | Console, Support |
|
- | |||||
| 28 | W10159907 | Assembly, Mounting Strap Weld |
|
- | |||||
| 29 | W10233256 | Cam, Locking Iec |
|
$ 77.22 | |||||
| 30 | W10198322 | Bracket Pd Coin Drop & Pn Non-coin |
|
- | |||||
| 30 | WPW10198323 | Bracket Pr - Card Reader (Replaces: W10198323) |
|
$ 25.90 | |||||
| 31 | W10198336 | Fascia Pr - Card Reader |
|
$ 283.20 | |||||
| 31 | W10198334 | Fascia Pd - Coin Drop |
|
$ 129.18 | |||||
| 32 | W10129069 | Clip, Harness |
|
- | |||||
| 33 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 7.30 | |||||
| 34 | W10198284 | Buttons, Fascia |
|
$ 195.55 | |||||
| 35 | W10198390 | Display, Window |
|
$ 86.45 | |||||
| 36 | W10198345 | Collar, Dispenser |
|
- | |||||
| 37 | WPW10198367 | Bezel (Replaces: W10198367) |
|
$ 24.53 | |||||
| 40 | W10198366 | Cover Pd/pn |
|
- | |||||
| 41 | W10342230 | Cable Set, Ui To Ccu Communication |
|
- | |||||
| 42 | WPW10239515 | Harness, Card Reader (Replaces: W10239515) |
|
$ 155.18 | |||||
| 43 | W11519983 | Card Reader, Conversion Kit (Replaces: W10198451) |
|
$ 78.10 | |||||
| 44 | W10300896 | Wire Harness, Vault Switch |
|
- | |||||
| 45 | W10151156 | Shield, Sensor Switch |
|
- | |||||
| 46 | WPW10198198 | Assembly, Button Set (Replaces: W10198198) |
|
$ 243.86 | |||||
| 47 | W11129439 | Jumper, Switch Service/vault (Replaces: W10133282) |
|
$ 17.66 |
