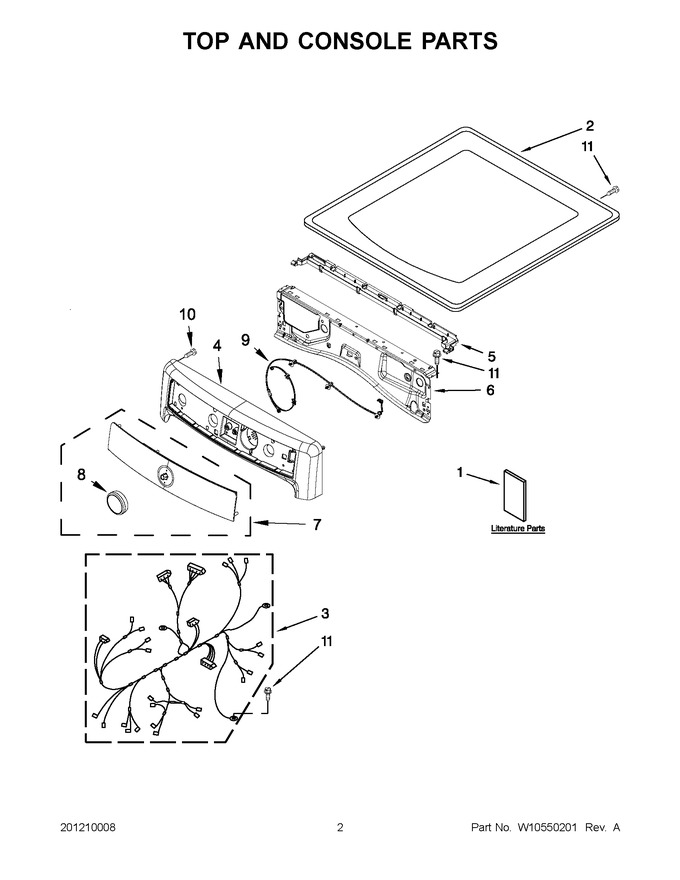

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10494218		Use & Care Guide		Appelez-nous	-
1	W10484433		Tech Sheet		Appelez-nous	-
1	W10508904		Installation, Instruction		Appelez-nous	-
1	W10504394		Wiring Diagram		Appelez-nous	-
2	W10301057		Top (granite)				$ 139.14
2	WPW10208383		Top (white)   (Replaces: W10208383)				$ 323.93
3	W10526657		Harness, Main		Appelez-nous	-
4	W10469303		Panel, Console (granite)				$ 384.65
4	W10469302		Panel, Console (white)				$ 412.05
5	WPW10653575		Water Channel   (Replaces: W10259210)				$ 90.94
6	W11480682		Bracket, Console   (Replaces: W10208198)				$ 81.21
7	W10469308		Iml Assembly (white)		Appelez-nous	-
7	W10469309		Iml Assembly (granite)				$ 733.03
8	W10853910		Knob, Control (white)   (Replaces: W10519048)				$ 53.94
8	W10853910		Knob, Control (granite)   (Replaces: W10480090)				$ 53.94
9	W10443062		Cable, User Interface				$ 160.86
10	W10489172		Screw				$ 11.98
11	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
