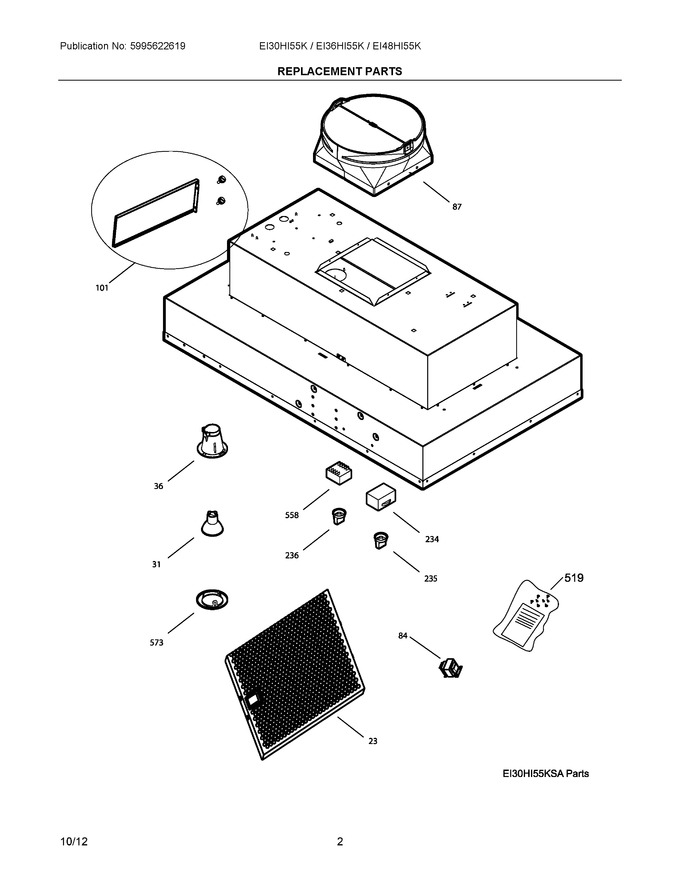

02 - Replacement Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 23 | 5304464265 | Filter, Grease |
|
$ 108.76 | |||||
| 31 | 5304482257 | Lamp, Halogen, 50 W, 120 V (Replaces: 5304466038) |
|
$ 103.67 | |||||
| 36 | 5304487848 | Lamp Holder, Socket, W/housing |
|
$ 205.52 | |||||
| 84 | 5304487850 | Transformer |
|
- | |||||
| 87 | 5304487841 | Damper, Exhaust |
|
- | |||||
| 101 | 5304487851 | Spacer, Filter |
|
- | |||||
| 234 | 5304487843 | Switch, Motor, Rotary |
|
- | |||||
| 235 | 5304487844 | Knob, Motor Switch |
|
- | |||||
| 236 | 5304487845 | Knob, Light Switch |
|
- | |||||
| 519 | 5304487847 | Hardware, Installation, W/user Manual |
|
- | |||||
| 558 | 5304487842 | Switch, Light/lamp, Rotary |
|
- | |||||
| 573 | 5304487849 | Bezel, Lamp Assembly |
|
- |
