SELECT A DIAGRAM

01 - Top And Cabinet Parts

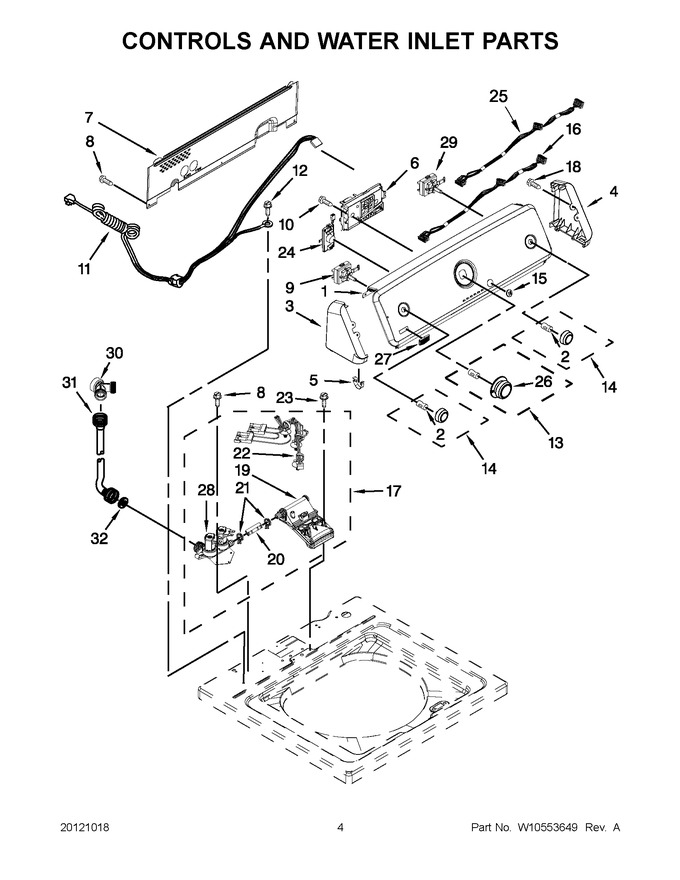

02 - Controls And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10464666		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	W10193826		Cap, End (l.h.)		Appelez-nous	-
4	W10193823		Cap, End (r.h.)		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10723438		Control Unit Assembly, Machine & Motor   (Replaces: W10480084)				$ 301.67
7	WPW10420985		Panel, Console Rear Cover   (Replaces: W10420985)				$ 263.85
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 135.86
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	W10446856		Cord, Power		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	WPW10317454		Knob, Timer (grey)   (Replaces: W10317454)				$ 63.47
14	WPW10317455		Knob, Control (grey)   (Replaces: W10317455)				$ 63.33
15	WPW10251309		Push Button, Start   (Replaces: W10251309)			Immediately	$ 76.00
16	W10481152		Harness, Upper (water Level)		Appelez-nous	-
17	W10360889		Inlet Assembly, Water		Appelez-nous	-
18	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
19	WPW10441423		Vacuum Break   (Replaces: W10441423)				$ 90.33
20	W10238347		Hose, Vacuum Break				$ 25.86
21	WP596669		Clamp, Hose   (Replaces: W10117298)			Immediately	$ 8.82
22	W10474662		Harness, Valve		Appelez-nous	-
23	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
24	W10522615		Filter, Line Assembly		Appelez-nous	-
25	W10480948		Harness, Upper (temperature)		Appelez-nous	-
26	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
27	W10323734		Badge, Assembly				$ 63.95
28	W10356260		Valve, Water Mixing		Appelez-nous	-
29	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 190.47
30	WPW10269488		Connector, Hose -``y``   (Replaces: W10269488)				$ 89.64
31	WPW10615809		Hose, Water Inlet (inlet Hose (blue))   (Replaces: 3949383)				$ 104.71
31	WPW10615831		Hose, Water Inlet (inlet Hose (red))   (Replaces: 3949382)				$ 103.65
32	WP3357450		Washer, Hose Adapter   (Replaces: 3357450)				$ 11.56
NI	N/P		(parts Not Shown)		Appelez-nous	-
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 28.04
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 80.90

    View Diagram in Separate Window       Print Part List
