SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door


06 - Freezer Door


07 - Air Flow Parts


08 - Unit Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

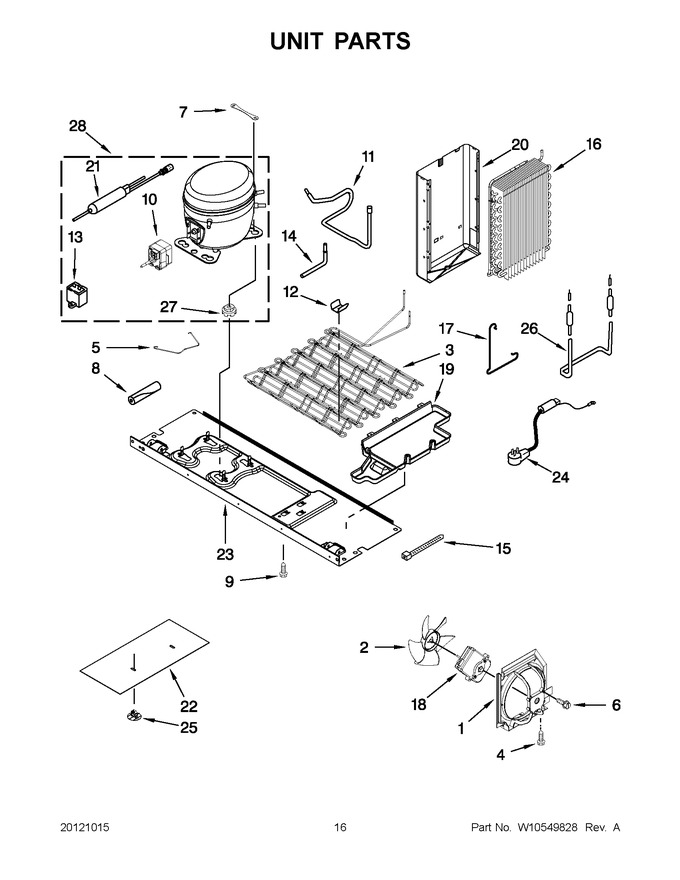

1	WPW10251467		Air Baffle   (Replaces: W10251467)				$ 84.80
2	W10156818		Blade, Fan   (Replaces: 12825802)			Immediately	$ 62.80
3	W11708426		Condenser Assembly   (Replaces: W10240365)				$ 271.19
4	WP489399		Screw   (Replaces: W10142231)				$ 7.30
5	2302129		Bale Strap		Appelez-nous	-
6	WPW10171469		Screw   (Replaces: W10171469)			Immediately	$ 11.61
7	W10236396		Strap, Compressor			Immediately	$ 20.81
8	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 21.32
9	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
10	WP2312007		Device, Start   (Replaces: 2312007)				$ 189.69
11	W11311688		Tube Suction   (Replaces: W10219381)				$ 88.67
12	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 19.38
13	2321245		Capacitor		Appelez-nous	-
14	2325479		Tube, Process		Appelez-nous	-
15	WP2205813		Tie, Wire   (Replaces: 2205813)				$ 8.11
16	WP2188822		Evaporator, Fc   (Replaces: 2188822)			Immediately	$ 356.84
17	2161324		Clip, Defrost Heater		Appelez-nous	-
18	W10837641		Fan, Motor   (Replaces: W10293680)		Appelez-nous	-
19	WPW10251469		Tray, Evaporator   (Replaces: W10251469)				$ 178.00
20	W10274575		Heat Shield				$ 101.51
21	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
22	W10284726		Unit Cover, Bottom				$ 115.91
23	W10277704		Support Plate, Compressor				$ 169.00
24	W10421068		Power Cord		Appelez-nous	-
25	W10296661		Clip, Bottom Cover				$ 17.78
26	W10837285		Heater, Defrost   (Replaces: W10251473)		Appelez-nous	-
27	WPW10169124		Grommet   (Replaces: 10835903)				$ 7.55
28	W10183407		Compressor   (Replaces: W10120455)				$ 435.61
NI	N/P		Refrigerant Charge (5.0oz. (r-134a))		Appelez-nous	-
NI	978026		Valve, Access			Immediately	$ 134.49
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access Ÿ``)				$ 137.25
NI	876764		Valve, Access			Immediately	$ 95.92
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 110.51
