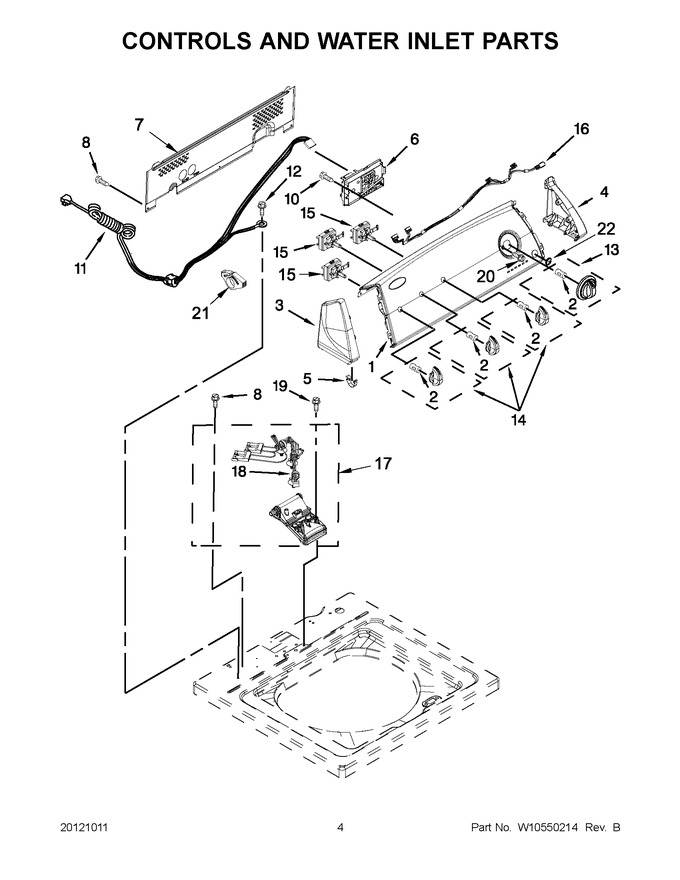

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10448568		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WP8565957		Endcap Assembly, Left Hand (white)   (Replaces: 8566035)				$ 64.76
4	WP8565954		Endcap Assembly, Right Hand (white)   (Replaces: 8566032)				$ 65.84
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10538241		Control Unit Assembly, Machine & Motor   (Replaces: W10536126)		Appelez-nous	-
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 360.43
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	WPW10525194		Cord, Power   (Replaces: W10276649)				$ 163.41
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	W10034750		Knob, Timer Assembly (white/metallic)				$ 28.27
14	W10034380		Knob, Control Assembly (white/metallic)				$ 25.06
15	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 190.47
16	W10291183		Harness, Upper				$ 156.04
17	WPW10683653		Inlet Assembly, Water   (Replaces: W10472844)				$ 216.49
18	W10876654		Harness, Valve   (Replaces: W10423127)				$ 194.92
19	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
20	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
21	WPW10663966		Clamp, Hose   (Replaces: W10348582)				$ 224.26
22	WPW10251309		Pushbutton, Start   (Replaces: W10251309)			Immediately	$ 76.00
