01 - Top And Cabinet Parts

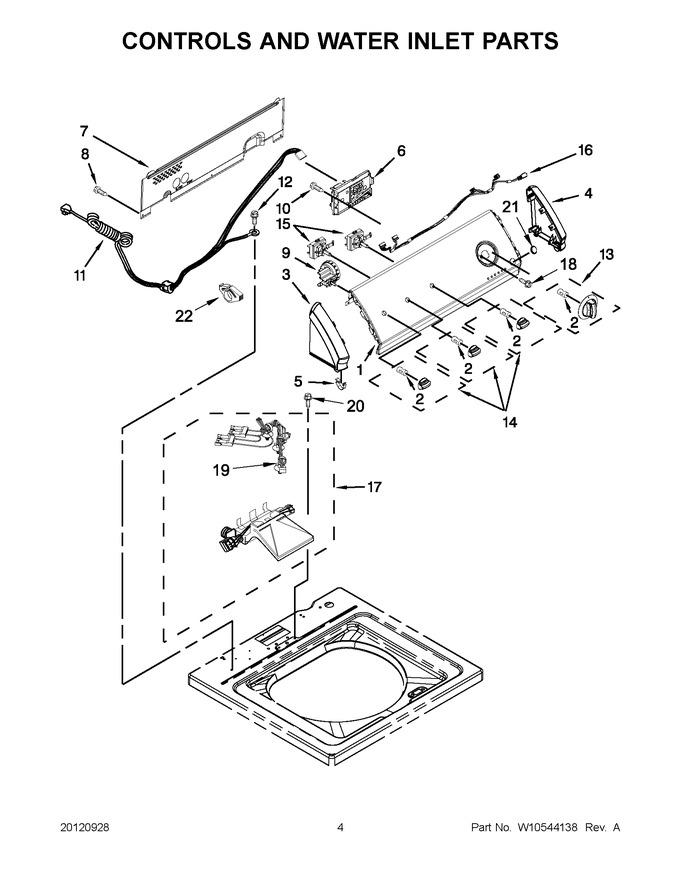

02 - Controls And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10317196		Panel, Console (white)		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WP8559502		Endcap Assembly, Left Hand (white)   (Replaces: 8559502)				$ 72.99
4	WP8559501		Endcap Assembly, Right Hand (white)   (Replaces: 8559501)				$ 72.77
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10480291		Control Unit Assembly		Appelez-nous	-
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 360.43
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10268911		Switch, Water Level   (Replaces: W10268911)			Immediately	$ 190.65
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	WPW10525194		Cord, Power   (Replaces: W10525194)				$ 163.41
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	W10317457		Knob, Timer Assembly (grey)		Appelez-nous	-
14	W10317458		Knob, Control Assembly (grey)		Appelez-nous	-
15	WPW10285512		Switch, Rotary Encoder   (Replaces: W10285512)			Immediately	$ 190.47
16	W10291174		Harness, Upper				$ 253.35
17	WPW10683603		Inlet Assembly, Water   (Replaces: W10423125)			Immediately	$ 81.56
18	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
19	W10876654		Harness, Valve   (Replaces: W10423127)				$ 194.92
20	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
21	W10272474		Pushbutton, Start		Appelez-nous	-
22	WPW10663966		Clamp, Hose   (Replaces: W10348582)				$ 224.26
