SELECT A DIAGRAM

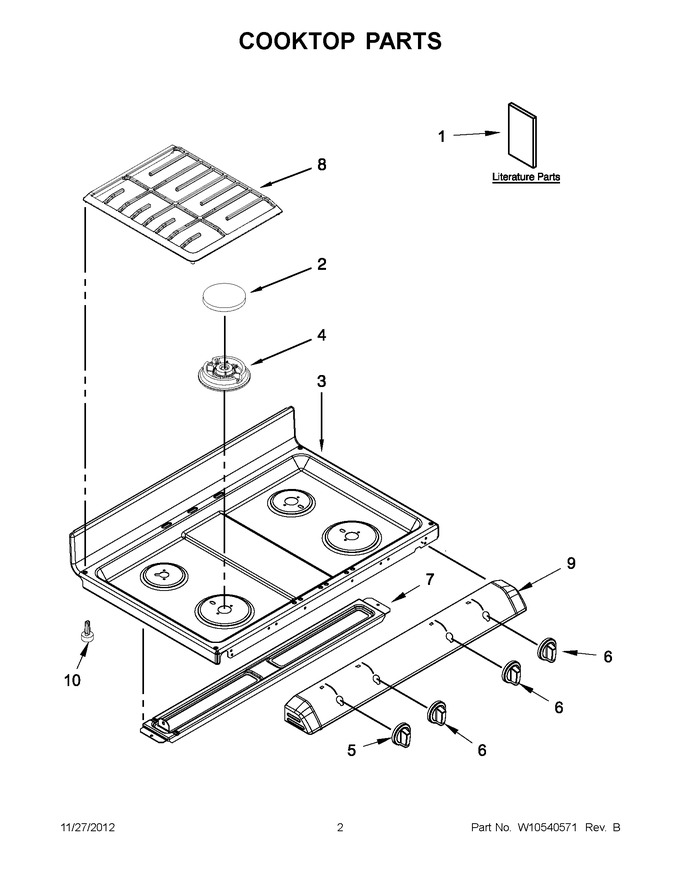

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10526071		Instructions, Installation		Appelez-nous	-
1	W10432286		Owners Manual		Appelez-nous	-
1	W10311748		Tech Sheet Brochure, Tips (safe Cooking)		Appelez-nous	-
1	9762761		Tips, Safer Cooking (english)		Appelez-nous	-
2	WPW10244447		Set, Burner Cap (black)   (Replaces: W10244447)				$ 200.90
2	WPW10244448		Set, Burner Cap (wetstone)   (Replaces: W10244448)				$ 231.06
3	W10336322		Cooktop (white)   (Replaces: W10204726)		Appelez-nous	-
3	W10204725		Cooktop (black)		Appelez-nous	-
4	WPW10406797		Burner Head, Rapid (12k) (right Front/right Rear)   (Replaces: W10406797)				$ 92.91
4	WPW10406243		Burner Head, Auxiliary (6k) (left Rear)   (Replaces: W10406243)			Immediately	$ 39.08
4	WPW10406878		Burner Head, Ultra Rapid (17.5k) (left Front)   (Replaces: W10406878)				$ 107.48
5	W10177198		Knob, Control (white)   (Replaces: 7733P533-60)				$ 84.89
5	W10177201		Knob, Control (black)   (Replaces: 7733P532-60)				$ 21.03
5	WPW10415451		Knob, Control (stainless)   (Replaces: W10415451)				$ 21.38
6	W10177197		Knob, Control (white)   (Replaces: 7733P527-60)				$ 20.29
6	WP7733P526-60		Knob, Control (black)   (Replaces: 7733P526-60)			Immediately	$ 25.16
6	WPW10415450		Knob, Control (stainless)   (Replaces: W10415450)			Immediately	$ 21.53
7	W10518258		Bracket, Cooktop Support   (Replaces: W10364218)		Appelez-nous	-
8	W10338215		Set, Grate (wetstone)		Appelez-nous	-
8	WPW10338214		Set, Grate (black)   (Replaces: W10338214)				$ 345.92
9	W10219248		Panel, Manifold (white)		Appelez-nous	-
9	W10219247		Panel, Manifold (black)		Appelez-nous	-
9	W10280648		Panel, Manifold (stainless)		Appelez-nous	-
10	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 17.61

    View Diagram in Separate Window       Print Part List
