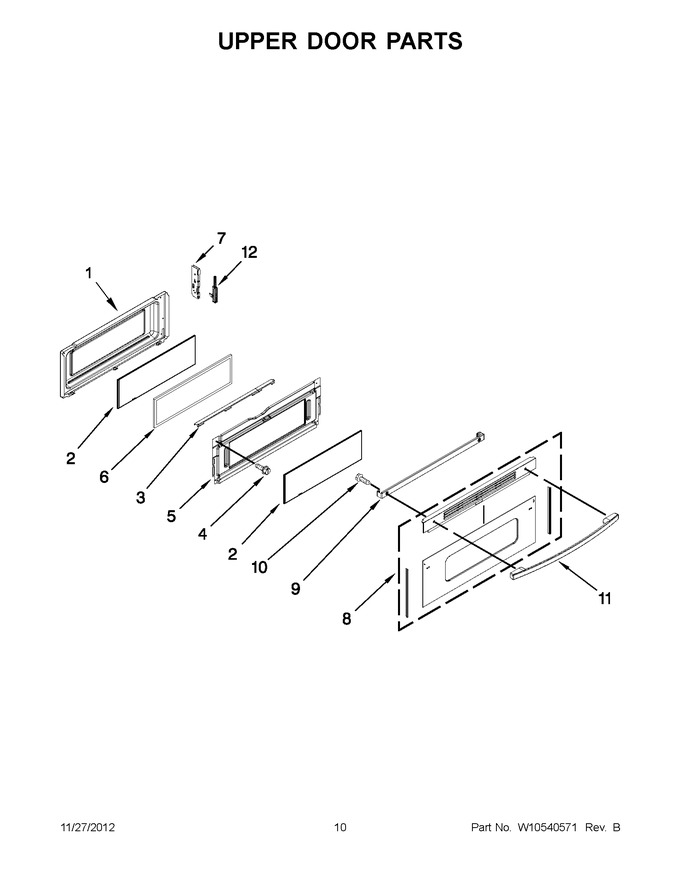

05 - Upper Door Parts


06 - Lower Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11051040		Lining, Door   (Replaces: W10485720)				$ 301.00
2	W11132120		Glass, Inner   (Replaces: W10272707)				$ 179.33
3	W10280369		Trim, Door (white Top)		Appelez-nous	-
4	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
5	W10485723		Retainer, Insulation				$ 252.42
6	WPW10321271		Insulation, Door   (Replaces: W10321271)				$ 99.18
7	W10647259		Receiver   (Replaces: W10277006)			Immediately	$ 9.32
8	W10346053		Assembly, Glass Door (black)		Appelez-nous	-
8	W10346054		Assembly, Glass Door (white)				$ 89.03
8	W10346055		Assembly, Glass Door (stainless)				$ 119.90
9	WPW10294695		Bracket, Handle (black)   (Replaces: W10294695)				$ 147.02
9	W10371554		Bracket, Handle (stainless)		Appelez-nous	-
10	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 8.20
11	WPW10323589		Handle, Door (black)   (Replaces: W10323589)			Immediately	$ 238.78
11	WPW10144883		Handle, Door (stainless)   (Replaces: W10144883)				$ 252.66
11	W10817434		Handle, Door (white)   (Replaces: W10323588)			Immediately	$ 234.82
12	WPW10485732		Hinge, Door (right)   (Replaces: W10485732)			Immediately	$ 55.76
12	WPW10485733		Hinge, Door (left)   (Replaces: W10485733)			Immediately	$ 59.59
