SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts

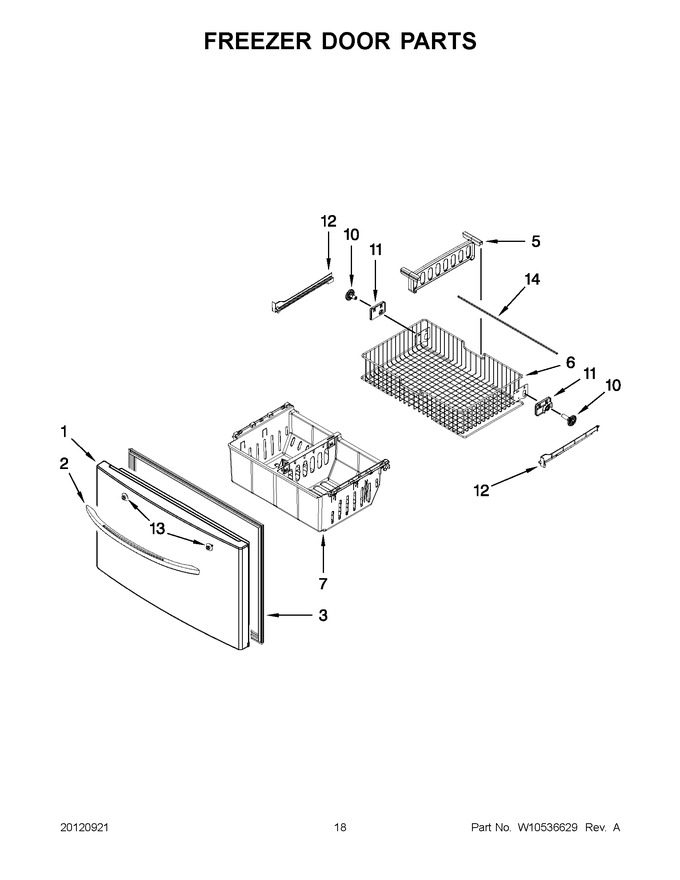

09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977863SQ		Freezer Door (stainless)   (Replaces: 12977863S)				$ 1,020.54
2	W10223025		Handle, Door (stainless)		Appelez-nous	-
3	WPW10714545		Gasket, Door (grey)   (Replaces: W10443322)				$ 323.60
4	W10146439		Divider, Upper Basket				$ 32.66
5	W11218042		Basket, Upper   (Replaces: W10348249)				$ 203.43
6	WPW10293682		Bin, Lower   (Replaces: W10293682)				$ 181.18
7	WPW10474715		Gear Spur (right Hand)   (Replaces: W10474715)			Immediately	$ 32.76
7	WPW10474716		Gear Spur (left Hand)   (Replaces: W10474716)			Immediately	$ 32.42
8	W10348259		Gear Mount (left Hand)				$ 89.87
8	W10348260		Gear Mount (right Hand)				$ 89.90
9	W11489993		Rack (left Hand)   (Replaces: W10516603)				$ 23.46
9	W11489994		Rack (right Hand)   (Replaces: W10516602)				$ 23.46
10	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 9.65
11	W11173556		Shaft, Rack   (Replaces: 12812904WD)				$ 32.38

    View Diagram in Separate Window       Print Part List
