SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts

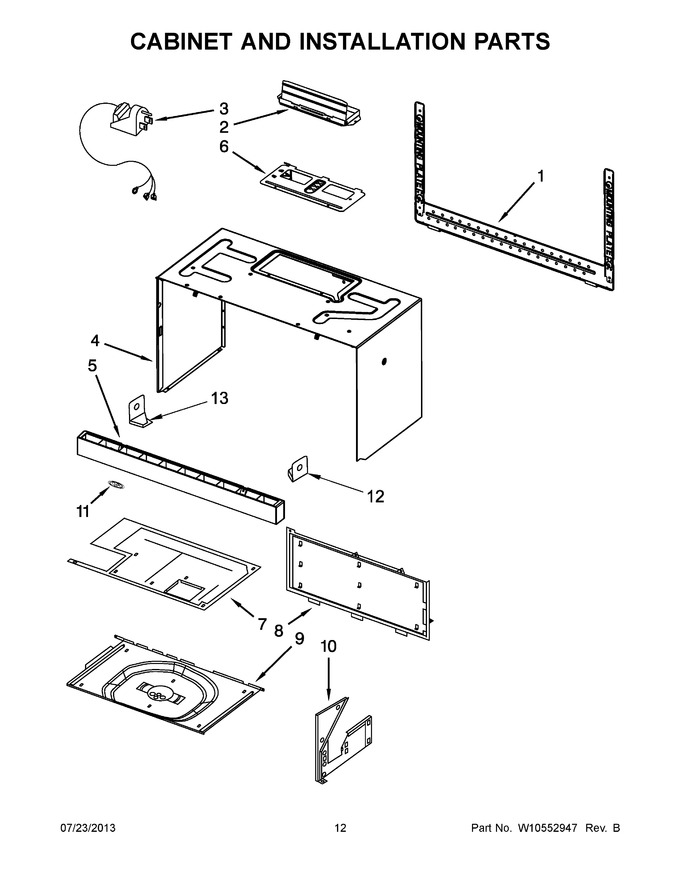

07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10245177)			Immediately	$ 24.69
2	W10843943		Damper   (Replaces: 8206442)			Immediately	$ 73.04
3	W10247765		Cord, Power		Appelez-nous	-
4	WPW10244765		Case, Outer (white)   (Replaces: W10244765)				$ 231.26
5	W10245217		Grille, Vent (white)				$ 105.98
6	W10210832		Cover, Hood Fan Motor				$ 6.68
7	W10248268		Assembly, Top Plate		Appelez-nous	-
8	W10248267		Assembly, Back Plate		Appelez-nous	-
9	W10249318		Assembly, Bottom Plate		Appelez-nous	-
10	W10248279		Assembly, Right Plate		Appelez-nous	-
11	W10309983		Nameplate		Appelez-nous	-
12	W10703282		Holder, Vent Right Side (white)   (Replaces: W10393276)				$ 11.00
13	W11026306		Holder, Vent Left Side (white)   (Replaces: W10393278)			Immediately	$ 7.55
12A	W10810989		Holder, Vent Right Side (black)   (Replaces: W10406307)				$ 10.22
13A	W10830163		Holder, Vent Left Side (black)   (Replaces: W10406308)				$ 14.21
4A	WPW10245176		Case, Outer (black)   (Replaces: W10245176)				$ 231.26
5A	W10245218		Grille, Vent (black)				$ 104.95
5B	W10245216		Grille, Vent (stainless)				$ 144.67
NI	W10553868		Miscellaneous, Ground Wire, Filter		Appelez-nous	-
NI	W10553872		Miscellaneous, Harness, Main		Appelez-nous	-
NI	WP8169704		Miscellaneous, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 13.35
NI	W10190020		Miscellaneous, Template, Upper				$ 56.21
NI	8205948		Miscellaneous, Installation, Hardware				$ 26.90
NI	W10553852		Miscellaneous, Harness, Wire Turntable Motor And Hood Lamp		Appelez-nous	-
NI	W10539840		Miscellaneous, Harness, Pcba Ground Wire				$ 25.08

    View Diagram in Separate Window       Print Part List
