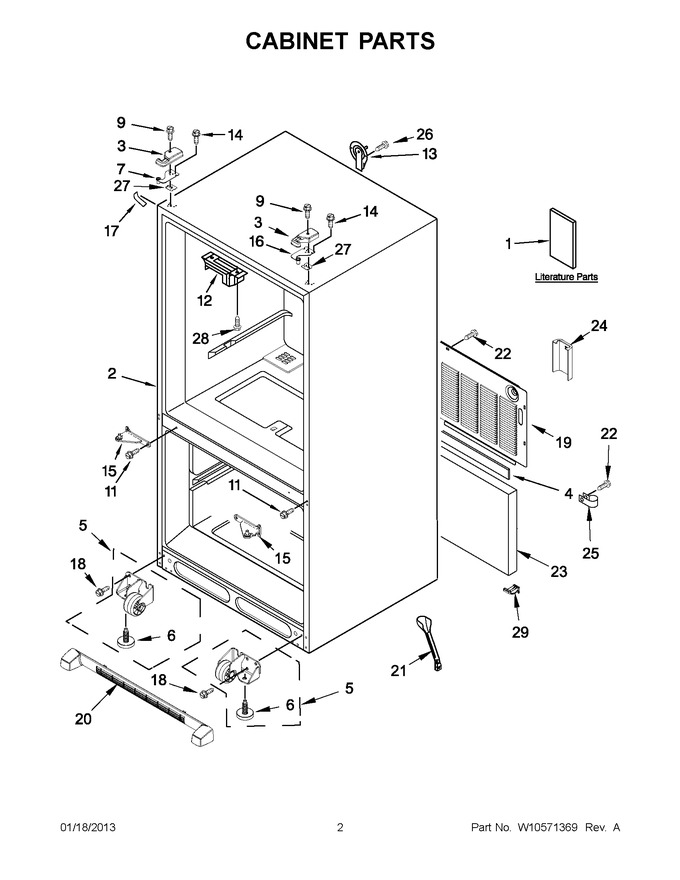

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10517966 | Tech Sheet |
|
- | |||||
| 1 | W10260546 | Energy Guide |
|
- | |||||
| 1 | W10366204 | Use & Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WPW10337634 | Cover, Hinge Left Hand (white) (Replaces: 12962301W) |
|
Immediately | $ 23.54 | ||||
| 3 | 67005958 | Cover, Hinge Right Hand (white) (Replaces: 12962302W) |
|
$ 21.57 | |||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 5 | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | W11592375 | Left Hand (Replaces: 12963204ED) |
|
$ 31.92 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 8.43 | ||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 13 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W10918113 | Hinge, Center Left Hand (white) (Replaces: 13000001WD) |
|
$ 97.92 | |||||
| 15 | 13000002WD | Hinge, Center Right Hand (white) |
|
$ 160.99 | |||||
| 16 | W11592374 | Right Hand (Replaces: 12963205ED) |
|
Immediately | $ 31.90 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 22.90 | |||||
| 18 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 19 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 206.23 | |||||
| 20 | WPW10534161 | Grille, Toe (white) (Replaces: W10236195N) |
|
$ 147.09 | |||||
| 21 | W10619951 | Tube-drain (Replaces: W10344402) |
|
Immediately | $ 42.39 | ||||
| 22 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 23 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 24 | W10208592 | Cover, Valve |
|
- | |||||
| 25 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 26 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 27 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 99.53 | |||||
| 27 | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 100.60 | |||||
| 28 | W11233072 | Screw (Replaces: 12990302V) |
|
Immediately | $ 14.72 | ||||
| 29 | W10485986 | Guide, Waterline |
|
Immediately | $ 12.95 |
