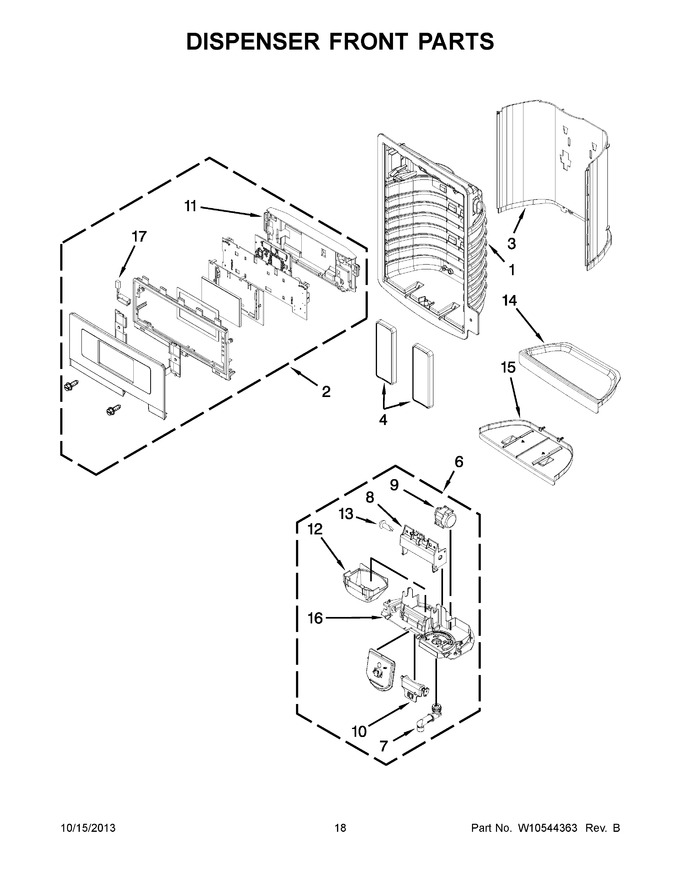

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10458215		Assembly, Ui (stainless)				$ 346.33
3	W11045978		False, Wall, Dispenser (grey)   (Replaces: W10299897)				$ 90.33
4	WPW10353848		Assembly, Pad (includes Blue Light) (grey)   (Replaces: W10353848)				$ 321.56
6	WPW10353552		Assembly, Seperator   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
11	W10254277		Cover, Board		Appelez-nous	-
12	WPW10435760		Guide-ice   (Replaces: W10339578)			Immediately	$ 23.94
13	W10174818		Clip Motor Coupling		Appelez-nous	-
14	W11192301		Dispenser, Tray (grey)   (Replaces: W10299895)				$ 65.82
15	WPW10267863		Dispenser, Tray Slide (grey)   (Replaces: W10267863)				$ 73.22
16	W10278987		Separator		Appelez-nous	-
17	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45

    View Diagram in Separate Window       Print Part List
