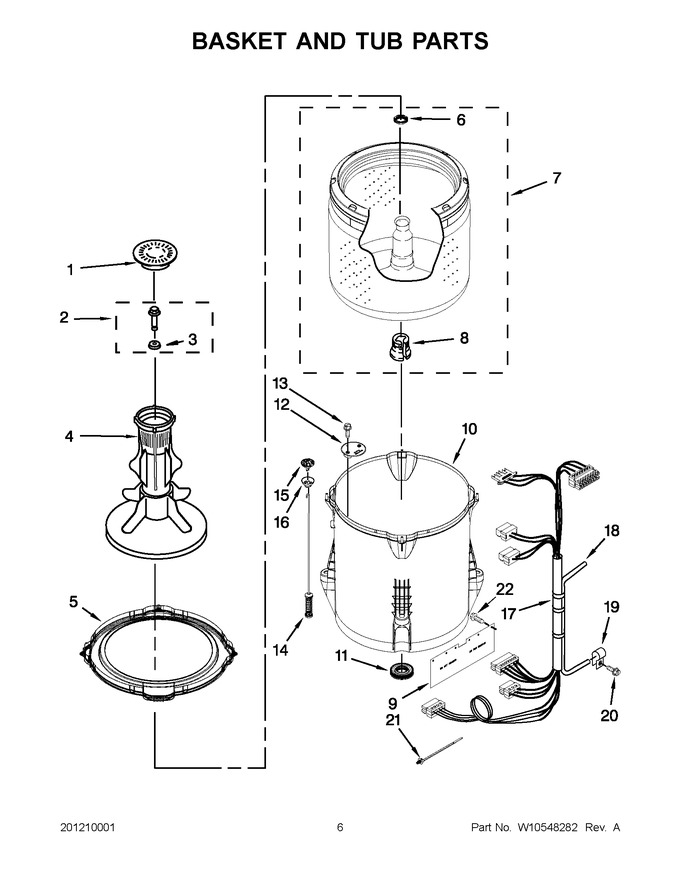

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3352483		Cap, Agitator   (Replaces: 3352483)				$ 62.15
2	W10772621		Screw & Washer   (Replaces: W10003790)			Immediately	$ 5.24
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 11.09
4	WPW10131112		Agitator Assembly (complete)   (Replaces: 63377)			Immediately	$ 124.13
5	WPW10215107		Ring-tub   (Replaces: W10215107)			Immediately	$ 154.15
6	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 11.56
7	W10349185		Basket Assembly   (Replaces: W10358261)				$ 389.34
8	WP389140		Block, Basket Drive   (Replaces: 389140)			Immediately	$ 27.49
9	W10339098		Shield, Splash				$ 25.85
10	W10371566		Tub (includes Tub Seal)   (Replaces: W10238320)				$ 356.34
11	W10324647		Seal, Tub   (Replaces: W10006371)			Immediately	$ 93.50
12	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 65.26
13	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
14	W10780048		Damper Assembly, Tub Suspension (set Of 4-includes Ball & Bushing)   (Replaces: W10257088)			Immediately	$ 88.83
15	W10405423		Ball, Suspension (set Of 4 - Includes Suspension Bushings)		Appelez-nous	-
16	W10256551		Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls)		Appelez-nous	-
17	W10376574		Harness, Lower (includes Pressure Hose & Cable Tie)				$ 111.83
18	WP353244		Hose, Pressure Switch   (Replaces: W10297436)			Immediately	$ 59.93
19	W10005430		Clamp, Cable			Immediately	$ 9.53
20	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80
21	WPW10339879		Cable Tie   (Replaces: W10267532)				$ 8.30
22	W10429200		Retainer, Push In		Appelez-nous	-
