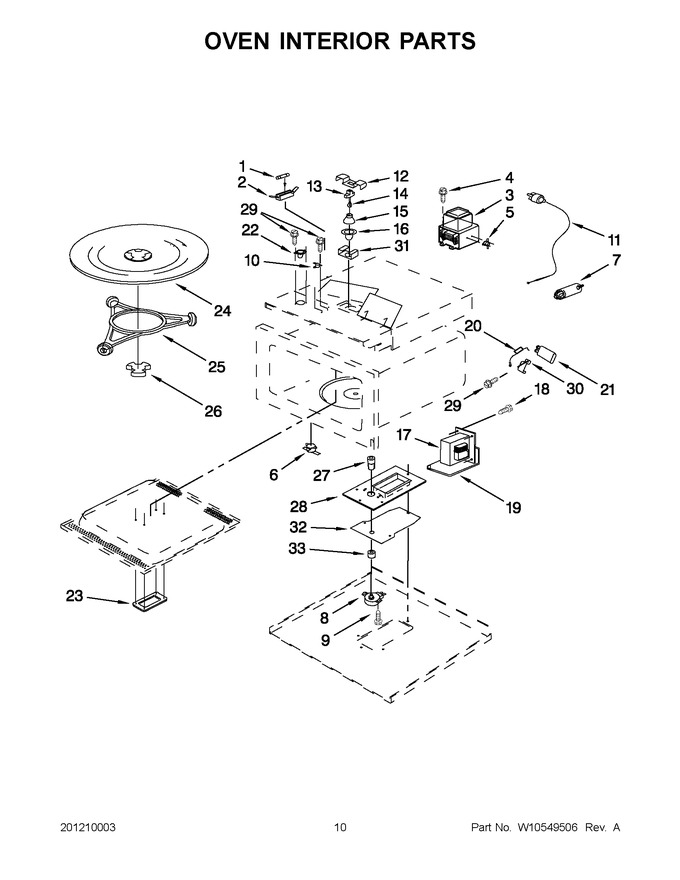

05 - Oven Interior Parts
06 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4375321 | Fuse (Replaces: 4375321) |
|
Immediately | $ 18.28 | ||||
| 2 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 87.31 | |||||
| 3 | W10245183 | Magnetron (Replaces: 8205650) |
|
Immediately | $ 245.45 | ||||
| 4 | 8205651 | Screw |
|
- | |||||
| 5 | 8205652 | Thermostat, Magnetron |
|
$ 29.96 | |||||
| 6 | W11846983 | Thermostat (Replaces: W10141630) |
|
Immediately | $ 18.90 | ||||
| 7 | W10549523 | Filter, Noise |
|
Immediately | $ 155.60 | ||||
| 8 | W10911403 | Motor, Turntable (Replaces: 8205655) |
|
Immediately | $ 117.53 | ||||
| 9 | 8205656 | Screw |
|
- | |||||
| 10 | W11676348 | Thermostat, Cavity 115 Celcius (Replaces: 8205659) |
|
$ 44.39 | |||||
| 11 | W10549524 | Cord, Power |
|
- | |||||
| 12 | 8205679 | Spring, Lamp Holder |
|
- | |||||
| 13 | WPW10490593 | Housing, Lamp (Replaces: 8205658) |
|
$ 77.82 | |||||
| 14 | W10886919 | Lamp, Halogen (Replaces: W10287972) |
|
Immediately | $ 32.22 | ||||
| 15 | 423107022541 | Reflector (Replaces: 4375320) |
|
$ 85.90 | |||||
| 16 | W11193483 | Lens, Lamp (Replaces: 4375318) |
|
Immediately | $ 104.82 | ||||
| 17 | W10426306 | Transformer |
|
- | |||||
| 18 | 8205672 | Screw |
|
- | |||||
| 19 | 8205673 | Reducer, Humidity |
|
- | |||||
| 20 | WPW10687786 | Diode, High Voltage (Replaces: 4375349) |
|
Immediately | $ 31.85 | ||||
| 21 | 461964654691 | Capacitor, High Voltage 2100 Volts (Replaces: W10426303) |
|
- | |||||
| 22 | W10871220 | Sensor, Humidity (Replaces: 8205690) |
|
$ 185.43 | |||||
| 23 | W11087199 | Cover, Inlet (Replaces: 8205675) |
|
Immediately | $ 22.23 | ||||
| 24 | W11373838 | Tray, Cook (Replaces: 8205676) |
|
Immediately | $ 78.50 | ||||
| 25 | W11110134 | Ring, Turntable (Replaces: 8205538) |
|
Immediately | $ 74.00 | ||||
| 26 | W11223840 | Driver, Turntable (Replaces: 8205539) |
|
$ 27.93 | |||||
| 27 | W11126044 | Shaft, Turntable Turntable (Replaces: 8205682) |
|
$ 30.23 | |||||
| 28 | 461967008471 | Holder, Turntable Motor (Replaces: 8205681) |
|
$ 85.90 | |||||
| 29 | 461967825321 | Screw (Replaces: 4375202) |
|
$ 12.13 | |||||
| 30 | 8205788 | Holder, Capacitor |
|
- | |||||
| 31 | W11440819 | Clip. Spring (Replaces: W10120231) |
|
$ 23.00 | |||||
| 32 | W10120234 | Cover, Motor |
|
$ 43.07 | |||||
| 33 | 4375252 | Gasket, Turntable Motor Shaft |
|
$ 38.27 |
