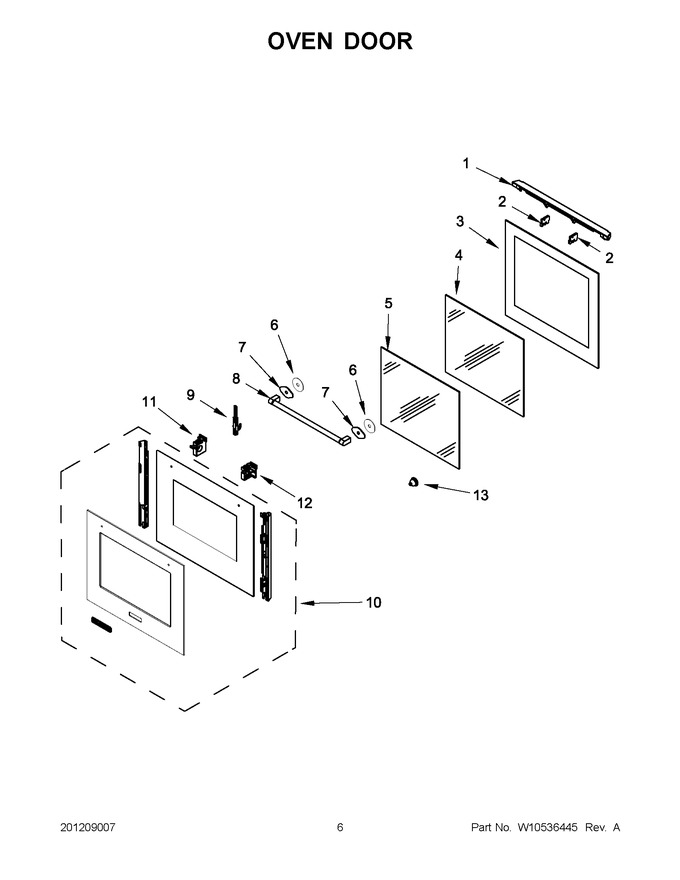

03 - Oven Door


04 - Internal Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10518369		Vent, Door Trim Top			Immediately	$ 125.64
2	W10518307		Spacer, Door Trim Top				$ 21.97
3	W10518374		Glass, Door Inner Assembly		Appelez-nous	-
4	WPW10518377		Glass, Door Inner   (Replaces: W10518377)				$ 182.04
5	W11778507		Glass, Door Inner   (Replaces: W10518376)				$ 175.92
6	W10322156		Spacer, Door Handle		Appelez-nous	-
7	W10240564		Spacer, Door Handle				$ 8.45
8	W10517986		Handle, Door		Appelez-nous	-
9	W10517972		Hinge, Door				$ 26.29
10	W10518297		Door, Oven Outer Assembly		Appelez-nous	-
11	W10518383		Support, Oven Door Glass		Appelez-nous	-
12	W10518384		Support, Oven Door Glass				$ 121.40
13	W10519004		Spacer, Oven Door Glass				$ 23.37
